Installation

CLUTCH: CLUTCH RELEASE CYLINDER: INSTALLATION

1. INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY





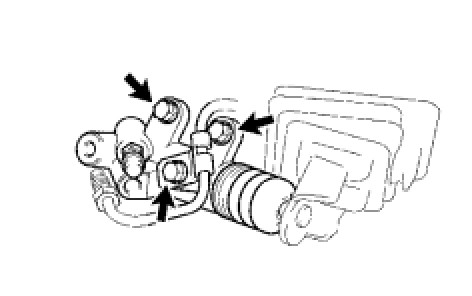

(a) Install the clutch release cylinder with the 2 bolts.

Torque : 12 Nm (120 kgf-cm, 9 ft-lbf)

(b) Install the flexible hose tube with the bolt.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

2. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE

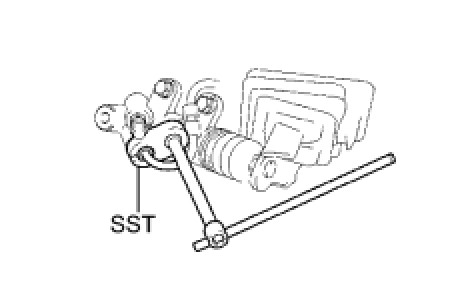

(a) Using SST, connect the flexible hose tube.

SST : 09023-00101

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

3. BLEED AIR FROM CLUTCH PIPE LINE

(a) Fill the brake reservoir with brake fluid and bleed air from the clutch system.

Torque : 8.4 Nm (85 kgf-cm, 74 in-lbf)

4. INSPECT FOR CLUTCH FLUID LEAK
