Reassembly

CLUTCH: CLUTCH RELEASE CYLINDER: REASSEMBLY

1. INSTALL RELEASE CYLINDER BLEEDER PLUG

Torque : 8.4 Nm (85 kgf-cm, 74 in-lbf)

2. INSTALL CLUTCH RELEASE CYLINDER KIT

(a) Install the bleeder plug cap to the bleeder plug.

(b) Install a new spring to the cylinder body.

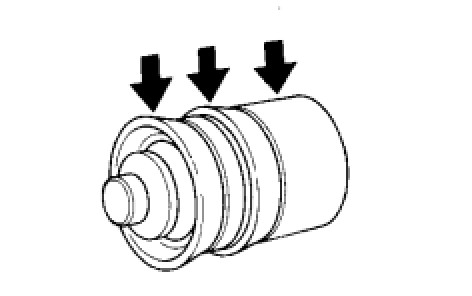

(c) Coat the piston with lithium soap base glycol grease, as shown in the illustration.





(d) Install the piston to the cylinder body.

NOTICE:

Be careful not to damage the inside of the cylinder body.

(e) Install the push rod to the cylinder body.

(f) Install the boot to the cylinder body.
