Installation

SUSPENSION: REAR STABILIZER BAR: INSTALLATION

1. INSTALL REAR STABILIZER BAR





(a) Install the 2 stabilizer bushes to the stabilizer bar.

HINT

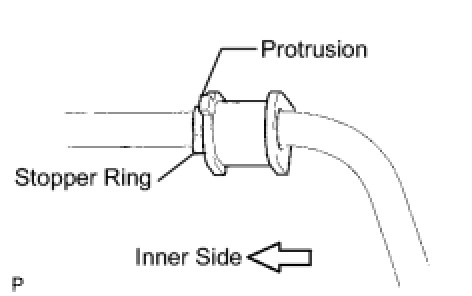

* Install the stabilizer bush to the outer side of the stopper ring on the stabilizer bar.

* Install the stabilizer bush with the protrusion facing towards the inside of the vehicle.





(b) Install the stabilizer bar and 2 No. 3 stabilizer bar brackets with the 2 bolts and 2 nuts.

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

2. INSTALL REAR STABILIZER LINK ASSEMBLY LH





(a) Install the stabilizer link LH with the 2 nuts.

Torque : 44 Nm (49 kgf-cm, 32 ft-lbf)

HINT

If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

3. INSTALL REAR STABILIZER LINK ASSEMBLY RH

HINT

Use the same procedures described for the LH side.

4. INSTALL REAR WHEEL ALIGNMENT

(a) Inspect and adjust the rear wheel alignment Rear Wheel Alignment.
