Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY









Install the timing chain cover with the 14 bolts and 2 nuts.

Torque 9.0 Nm (92 kgf-cm, 80 in-lbf for bolt A)

Torque 25 Nm (255 kgf-cm, 18 ft-lbf for bolt B)

Torque 55 Nm (561 kgf-cm, 41 ft-lbf for bolt C)

Torque 11 Nm (112 kgf-cm, 8 ft-lbf for nut)

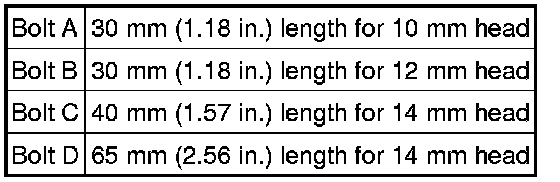

Bolt length:
