How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

The Techstream can be used in steps 4, 6, 8, and 9.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

(a) Confirm problem symptoms How To Proceed With Troubleshooting.

NEXT -- Continue to next step.

3. PASSENGER AIRBAG ON/OFF INDICATOR CHECK

NEXT -- Continue to next step.

4. CHECK DTCs (Present and Past DTCs)

(a) Check for DTCs.

Result:





B -- GO TO PROBLEM SYMPTOMS TABLE

A -- Continue to next step.

5. DTCs CHART

NEXT -- Continue to next step.

6. CIRCUIT INSPECTION

NEXT -- Continue to next step.

7. REPAIR

NEXT -- Continue to next step.

8. CLEAR DTCs (Present and Past DTCs)

(a) Clear DTCs.

NEXT -- Continue to next step.

9. CHECK DTCs (Present and Past DTCs)

(a) Check for DTCs.

Result:





B -- Go to step 5

A -- Continue to next step.

10. SYMPTOM SIMULATION

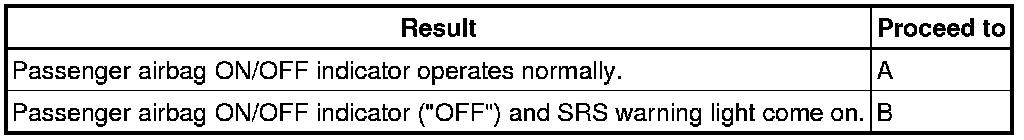

(a) Check the passenger airbag ON/OFF indicator condition.

Result:





B -- Go to step 5

A -- Continue to next step.

11. CONFIRMATION TEST

NEXT -- END
