Ignition Relay No. 2

2AZ-FE ENGINE CONTROL SYSTEM: IGNITION RELAY NO. 2: ON-VEHICLE INSPECTION

1. REMOVE IG2 RELAY (Marking: IG2)

(a) Remove the engine room relay block cover.

(b) Remove the IG2 relay from the engine room relay block.

2. INSPECT IG2 RELAY

(a) Measure the EFI relay resistance.

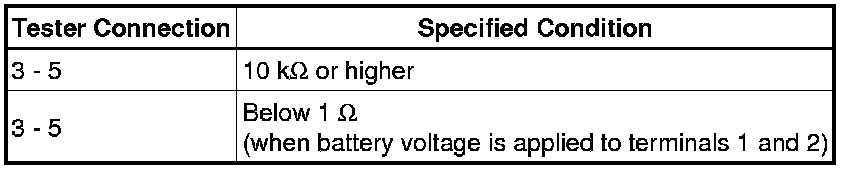

Standard resistance:





(b) If the result is not as specified, replace the relay.

3. INSTALL IG2 RELAY
