Compressor Clutch Relay: Testing and Inspection

AIR CONDITIONING: MAGNETIC CLUTCH RELAY: ON-VEHICLE INSPECTION

1. INSPECT MAGNET CLUTCH RELAY (Marking: MG/C)

(a) Remove the magnet clutch relay from the No. 2 engine room relay block.





(b) Measure the resistance according to the value(s) in the table below.

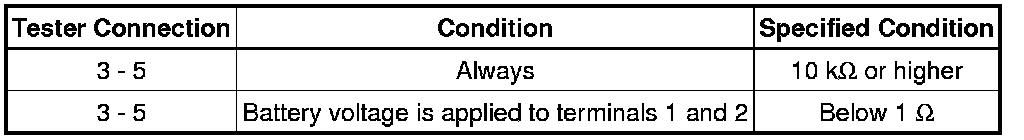

Standard resistance:





(c) If the resistance is not as specified, replace the magnet clutch relay.
