Installation

2AZ-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

1. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

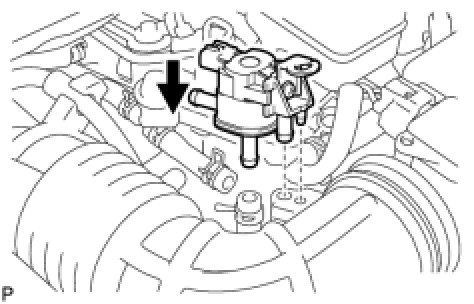

(a) Install the No. 1 vacuum switching valve assembly onto the air cleaner hose.

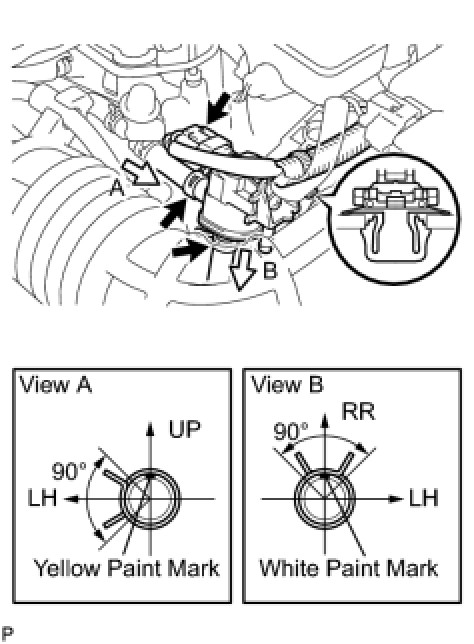

(b) Connect the 2 purge line hoses to the No. 1 vacuum switching valve assembly.





NOTICE:

Make sure that the hose clip and mark are at the correct angle when installing.

(c) Install the wire harness clamp.

(d) Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
