ECM Power Source Circuit

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: ECM Power Source Circuit

- ECM Power Source Circuit

DESCRIPTION

When the ignition switch is turned to the ON position, the battery voltage is applied to terminal IGSW of the ECM. The ECM MREL output signal causes a current to flow to the coil, closing the contacts of the EFI relay and supplying power to terminal +B of the ECM.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. INSPECT ECM (+B VOLTAGE)

(a) Disconnect the E4 and E8 ECM connectors.





(b) Turn the ignition switch to the ON position.

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(d) Reconnect the ECM connectors.

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG -- Continue to next step.

2. CHECK WIRE HARNESS (ECM - BODY GROUND)

(a) Disconnect the negative battery cable.





(b) Disconnect the E8 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(d) Reconnect the cable.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- Continue to next step.

3. INSPECT ECM (IGSW VOLTAGE)

(a) Disconnect the E4 and E8 ECM connectors.





(b) Turn the ignition switch to the ON position.

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(d) Reconnect the ECM connectors.

OK -- INSPECT ECM (MREL VOLTAGE)

NG -- Continue to next step.

4. INSPECT IGNITION SWITCH ASSEMBLY

(a) Disconnect the I5 ignition switch connector.

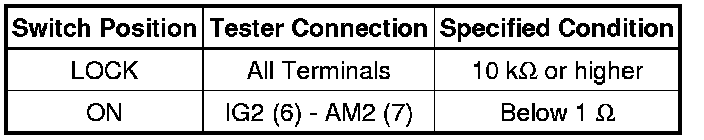

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reconnect the ignition switch connector.

NG -- REPLACE IGNITION SWITCH ASSEMBLY

OK -- CHECK AND REPLACE HARNESS AND CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

5. INSPECT ECM (MREL VOLTAGE)

(a) Turn the ignition switch to the ON position.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPLACE ECM

OK -- Continue to next step.

6. INSPECT EFI RELAY

(a) Remove the EFI relay from the engine room relay block.

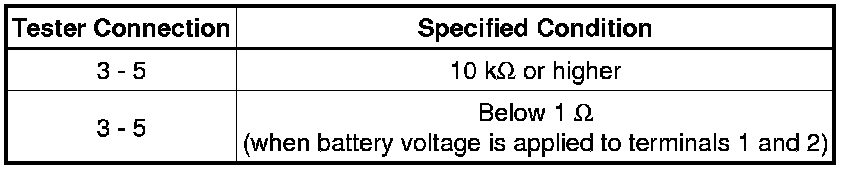

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reinstall the EFI relay.

NG -- REPLACE EFI RELAY

OK -- Continue to next step.

7. CHECK HARNESS AND CONNECTOR (EFI RELAY - ECM, BODY GROUND)

(a) Check the wire harness between the EFI relay and ECM.





(1) Remove the EFI relay from the engine room relay block.

(2) Disconnect the E4 ECM connector.

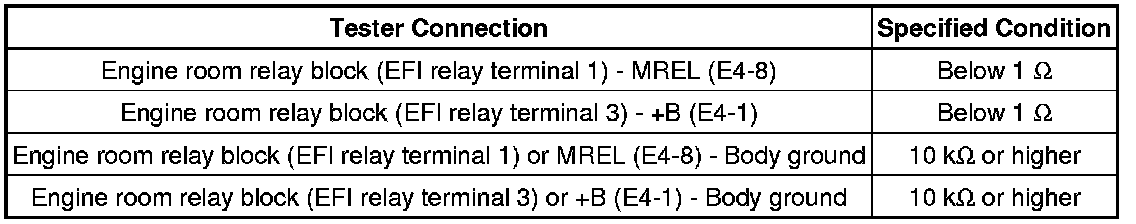

(3) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(4) Reinstall the EFI relay.

(5) Reconnect the ECM connector.

(b) Check the wire harness between the EFI relay and body ground.

(1) Remove the EFI relay from the engine room relay block.

(2) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(3) Reinstall the EFI relay.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- CHECK AND REPAIR HARNESS AND CONNECTOR (TERMINAL 5 OF EFI RELAY - BATTERY POSITIVE TERMINAL)

8. PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

9. REPAIR OR REPLACE HARNESS OR CONNECTOR

10. REPLACE IGNITION SWITCH ASSEMBLY Removal

11. REPLACE ECM Removal

12. REPLACE EFI RELAY

13. REPAIR OR REPLACE HARNESS OR CONNECTOR

14. CHECK AND REPLACE HARNESS AND CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

15. CHECK AND REPAIR HARNESS AND CONNECTOR (TERMINAL 5 OF EFI RELAY - BATTERY POSITIVE TERMINAL)
