Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: REMOVAL

HINT

* Use the same procedures for the RH side and LH side.

* The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH Removal

3. REMOVE SIDE TURN SIGNAL LIGHT LENS LH

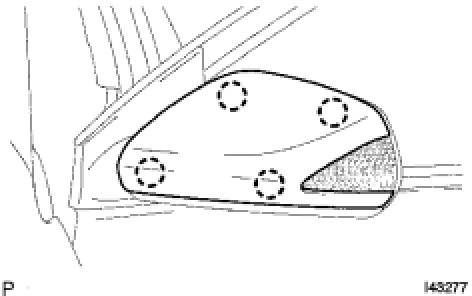

(a) Detach the 4 claws and remove the cover.





(b) Remove the 2 screws.

(c) Disconnect the connector and remove the side turn signal light lens LH.
