Room Light Assembly (For Front)

LIGHTING: ROOM LIGHT ASSEMBLY (for Front): INSPECTION

1. INSPECT NO. 1 ROOM LIGHT ASSEMBLY





(a) Measure the resistance according to the value(s) in the table below.

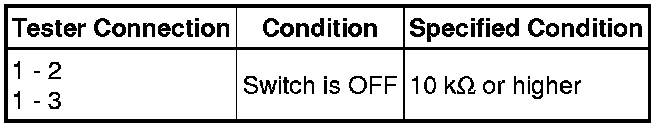

Standard resistance:





(b) Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, and then check that the light comes on when the switch is in the DOOR position.

OK:

Light comes on.

(c) Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 3, and then check that the light comes on when the switch is in the ON position.

OK:

Light comes on.
