Removal

OTHER SYSTEM: CIGARETTE LIGHTER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal

3. REMOVE CONSOLE PANEL UPPER Removal

4. REMOVE CIGARETTE LIGHTER COVER

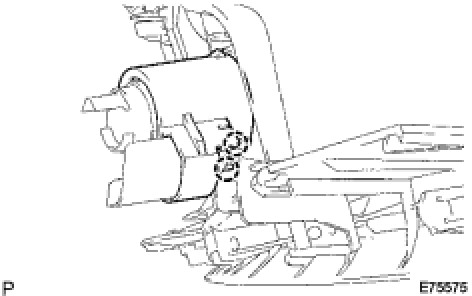

(a) Detach the 2 claws and remove the cigarette lighter cover.

5. REMOVE CIGARETTE LIGHTER ASSEMBLY





(a) Remove the cigarette lighter knob and element.

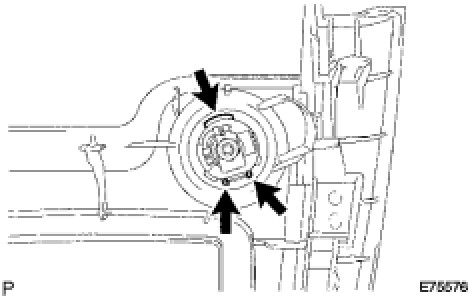

(b) Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and pull out the socket.

(c) Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter.
