Symptom Related Diagnostic Procedures

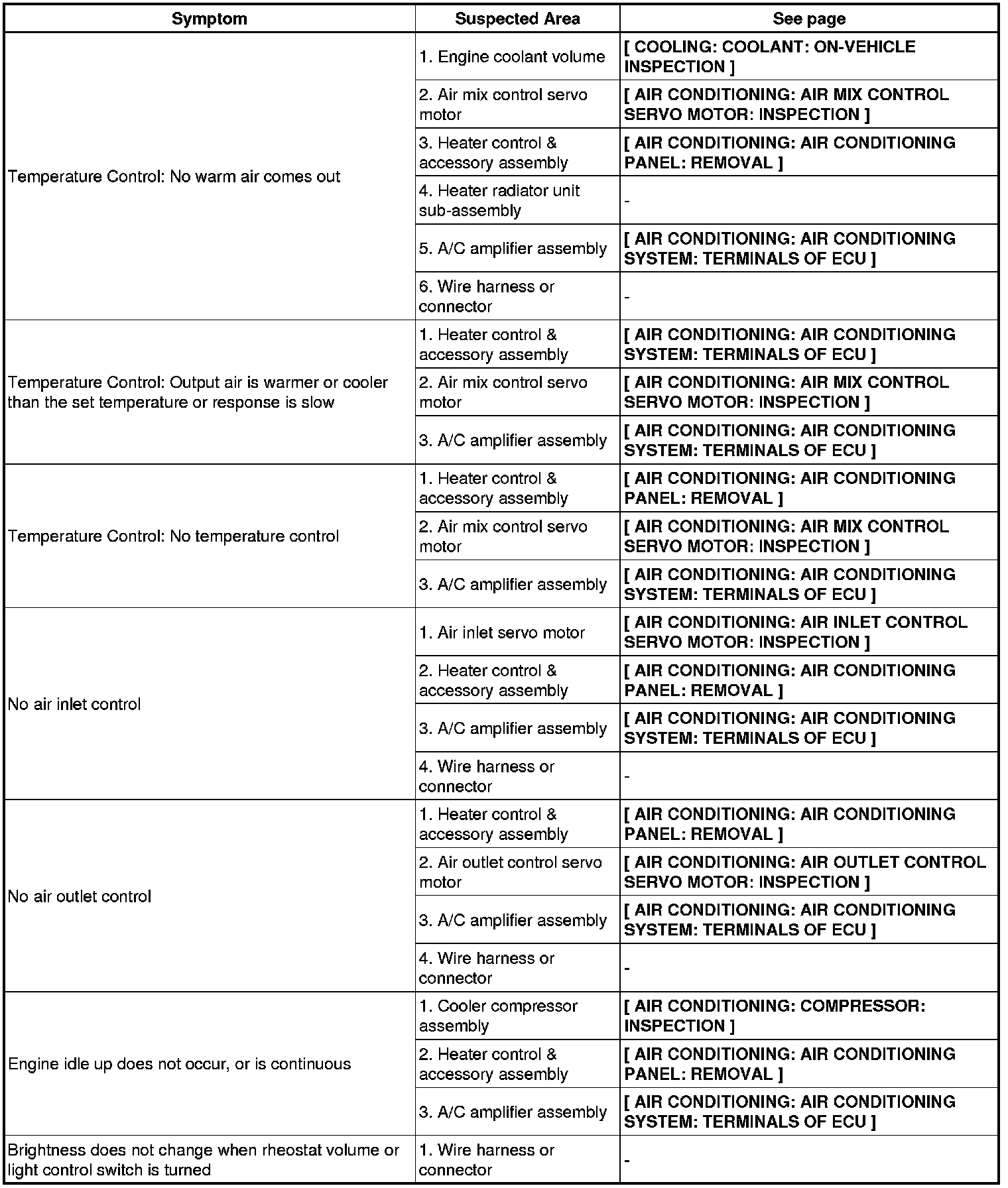

AIR CONDITIONING: AIR CONDITIONING SYSTEM: PROBLEM SYMPTOMS TABLE
Check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting test.
HINT
Inspect the "Fuse" and "Relay" before inspecting the suspected area as shown in the table below.
Inspect each malfunction circuit in numerical order for the corresponding symptom.
If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the A/C amplifier.
