Removal

AIR CONDITIONING: CONDENSER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

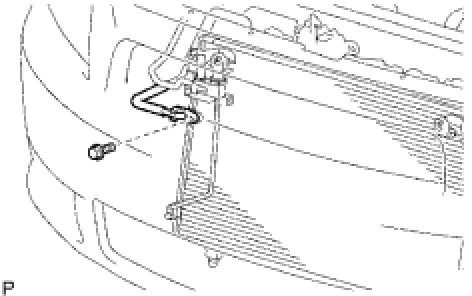

3. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

(a) Remove the bolt and disconnect the cooler refrigerant discharge hose from the cooler condenser.





(b) Remove the O-ring from the cooler refrigerant discharge hose.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

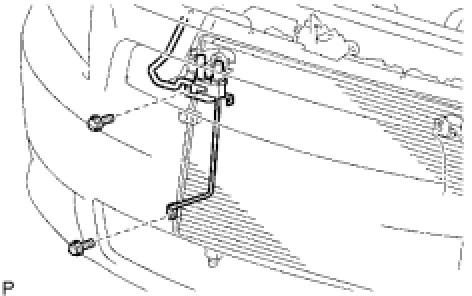

4. DISCONNECT COOLER REFRIGERANT LIQUID PIPE

(a) Remove the 2 bolts and disconnect the cooler refrigerant liquid pipe from the cooler condenser.





(b) Remove the O-ring from the cooler refrigerant liquid pipe.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

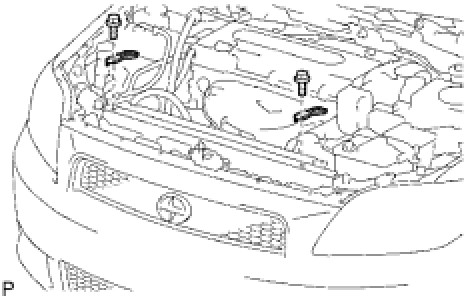

5. REMOVE RADIATOR SUPPORT UPPER BRACKET

(a) Remove the 2 bolts and 2 brackets.

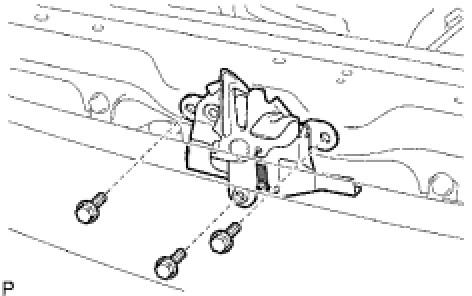

6. REMOVE HOOD LOCK ASSEMBLY

(a) Remove the 3 bolts and hood lock.





7. REMOVE LOW PITCHED HORN ASSEMBLY Removal

8. REMOVE HIGH PITCHED HORN ASSEMBLY Removal

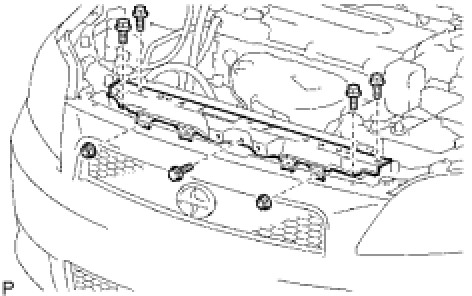

9. REMOVE RADIATOR SUPPORT UPPER

(a) Remove the 5 bolts, 2 nuts and radiator support upper.

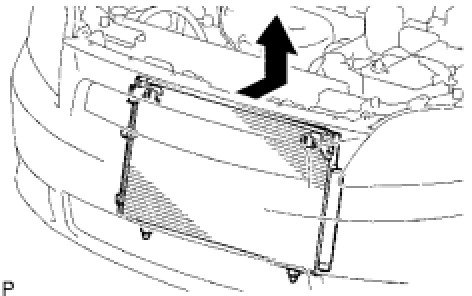

10. REMOVE COOLER CONDENSER ASSEMBLY

(a) Remove the cooler condenser.
