Air Mix Control Servo Motor

AIR CONDITIONING: AIR MIX CONTROL SERVO MOTOR: INSPECTION

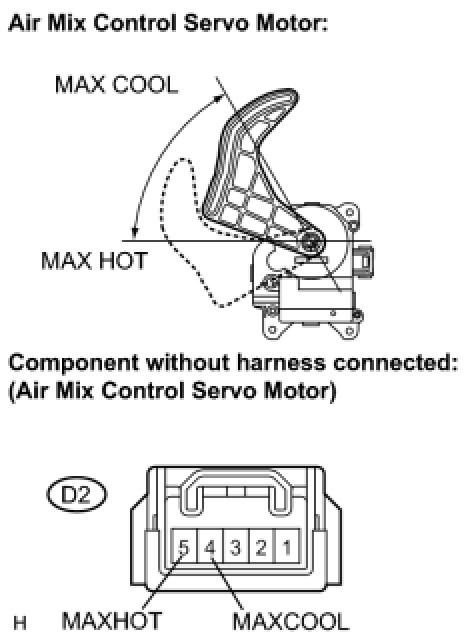

1. INSPECT AIR MIX CONTROL SERVO MOTOR

(a) Inspect the servo motor operation.

(1) Connect the positive (+) lead from the battery to terminal D2-5 (MAXHOT) and negative (-) lead to terminal D2-4 (MAXCOOL), and then check that the lever turns to the "MAXHOT" position smoothly.





(2) Connect the positive (+) lead from the battery to terminal D2-4 (MAXCOOL) and negative (-) lead to terminal D2-5 (MAXHOT), and then check that the lever turns to the "MAXCOOL" position smoothly.

If the operation is not as specified, replace the air mix control servo motor.
