Removal

EXTERIOR: SIDE MUDGUARD: REMOVAL

HINT

* Use the same procedures for the RH side and LH side.

* The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL HOUSE PLATE FRONT LH





(a) Remove the screw and wheel house plate.

2. REMOVE SIDE MUDGUARD SUB-ASSEMBLY LH

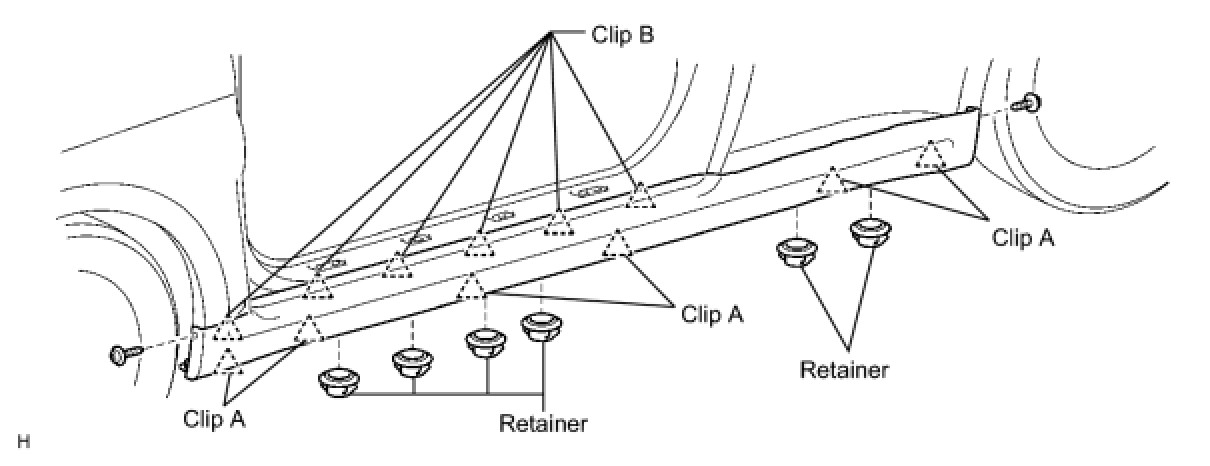

(a) Remove the 2 screws, 6 retainers, 2 grommets and 6 clips labeled A.

(b) Detach the 6 clips labeled B and remove the mudguard.





3. REMOVE NO. 1 SIDE MUDGUARD BRACKET





(a) Remove the 2 screws.

(b) Detach the claw and remove the bracket.
