Installation

EXTERIOR: SIDE MUDGUARD: INSTALLATION

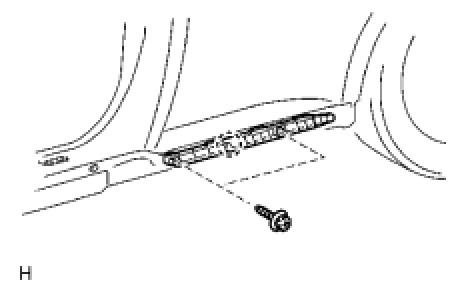

1. INSTALL NO. 1 SIDE MUDGUARD BRACKET

(a) Attach the claw to install the bracket.





(b) Install the 2 screws.

2. INSTALL SIDE MUDGUARD SUB-ASSEMBLY LH

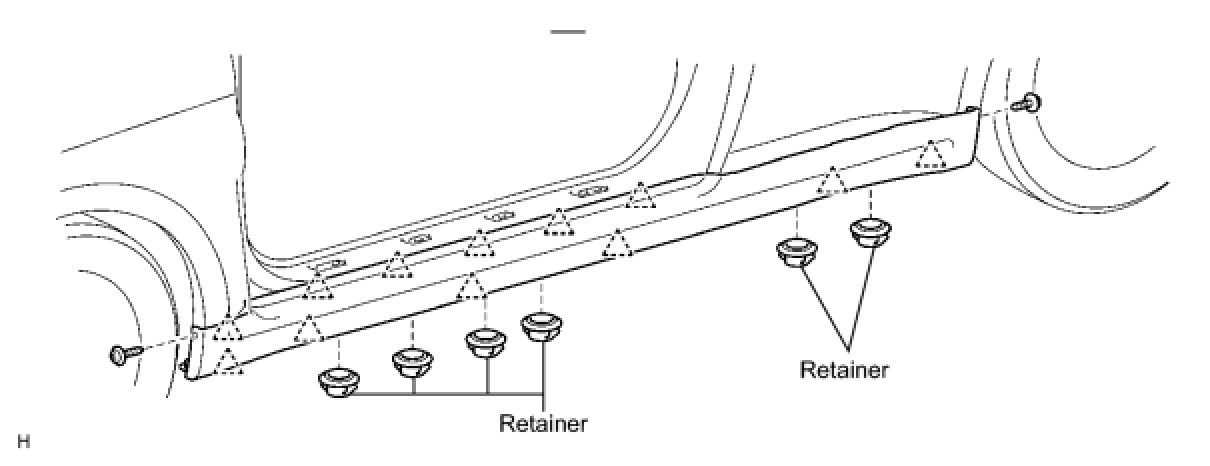

(a) Attach the 12 clips to install the mudguard.

(b) Install the 6 retainers, 2 grommets and 2 screws.

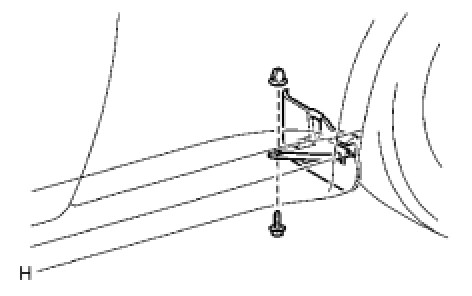

3. INSTALL REAR WHEEL HOUSE PLATE FRONT LH

(a) Install the wheel house plate with the screw.
