Body - Sunroof Initialization Procedure

S-SB-0019-09

April 6, 2009

Initialization of Moon Roof During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

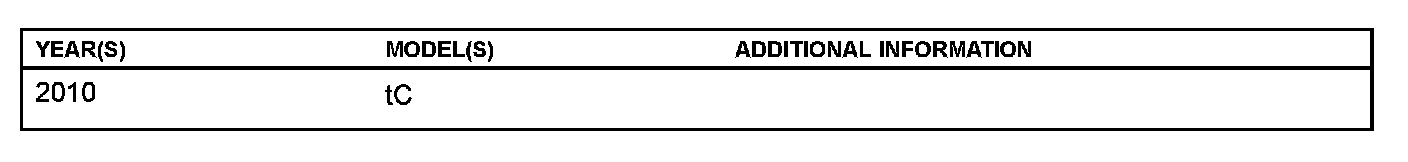

Applicability

Introduction

When the DCC fuse has been removed or the battery is disconnected, the power moon roof "AUTO" opening functions and "jam protection" are rendered inoperative. Perform the following procedure to re-initialize the moon roof during Pre-Delivery Service (PDS).

NOTE

Anytime the battery terminal has been disconnected, the moon roof MUST be re-initialized.





Warranty Information

Initialization Procedure

1. Cycle the ignition to the "IG-ON" position.

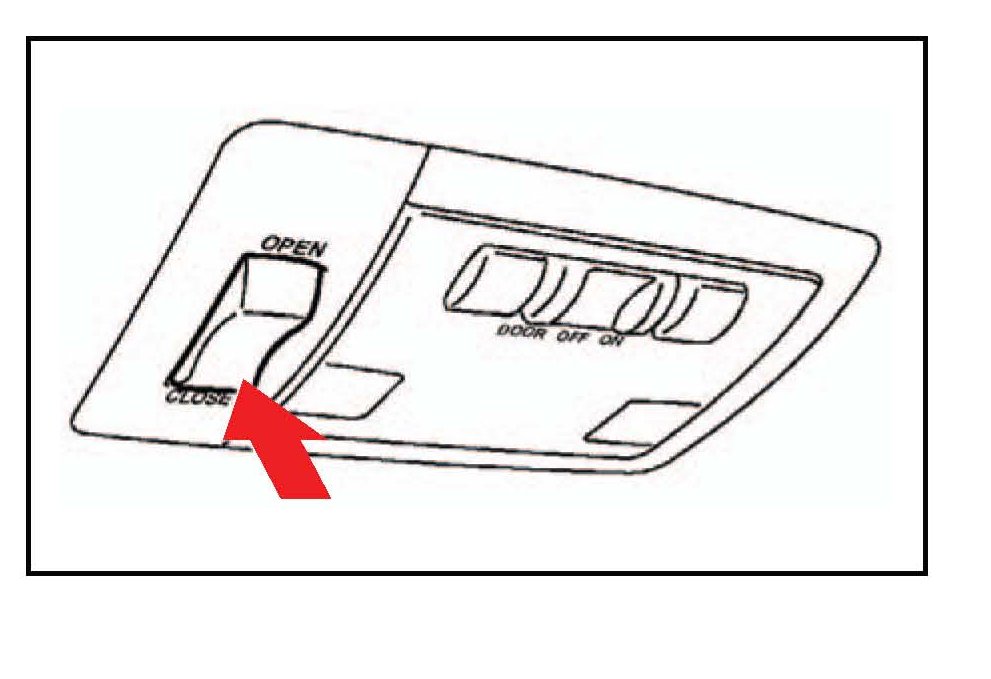

2. Push the "OPEN" side of the moon roof switch to open the moon roof HALFWAY





3. Push the "CLOSE" side of the moon roof switch and hold for 2 seconds after the motor stops.

4. Verify proper operation of "AUTO" mode.

NOTE
Jam protection function is enabled through the above initialization procedure.
