Installation

EXTERIOR: NAME PLATE: INSTALLATION

NOTICE:

Do not heat the vehicle body, emblem and name plate excessively.

HINT

When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

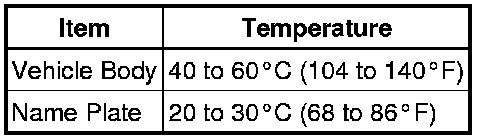

Standard heating temperature:





1. INSTALL NO. 5 BACK DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the name plate:

Clean the name plate.

(1) Using a heat light, heat the name plate.

(2) Remove the double-sided tape from the name plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the emblem.

(c) Install the name plate.

(1) Using a heat light, heat the vehicle body and name plate.

(2) Remove the peeling paper from the face of the name plate.

HINT

After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the name plate.

NOTICE:

Install the name plate exactly according to the specifications below.

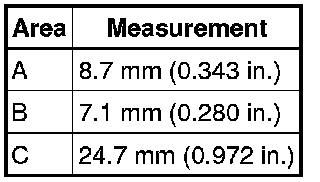

Standard measurement:
