Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

1. INSPECT BACK DOOR LOCK ASSEMBLY

(a) Check the operation of the door lock.





(1) Using a screwdriver, move the latch to the full-latch position.

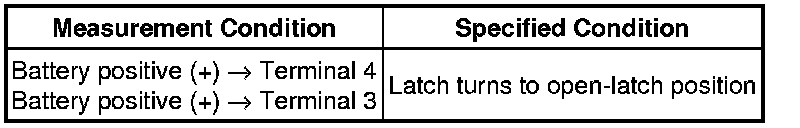

(2) Apply battery voltage to the door lock and check the operation of the latch.

OK:





(3) If the result is not as specified, replace the back door lock assembly.

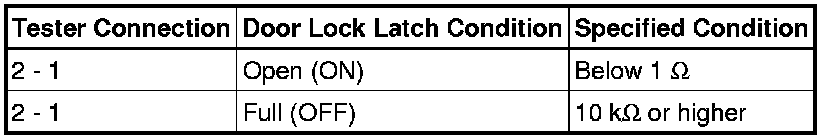

(b) Measure the resistance of the back door lock connector.

Standard resistance:





(c) If the result is not as specified, replace the back door lock assembly.
