On-Vehicle Inspection

AUDIO / VISUAL: LUGGAGE SPEAKER: ON-VEHICLE INSPECTION

1. INSPECT BOX SPEAKER ASSEMBLY

HINT

Remove interior parts so that the box speaker assembly can be seen.

(a) Check the speaker installation.

OK:

The speaker is securely installed.

(b) If the result is not as specified, reinstall the box speaker assembly.

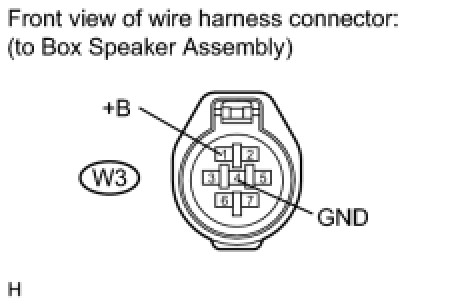

(c) Disconnect the box speaker assembly connector.





(d) Check the power source.

(1) Measure the voltage according to the value(s) in the table below.

Standard voltage:





* If the result is not as specified, there may be a malfunction on the wire harness side.
