Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

HINT

* Use the same procedures for the RH side and LH side.

* The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY LH

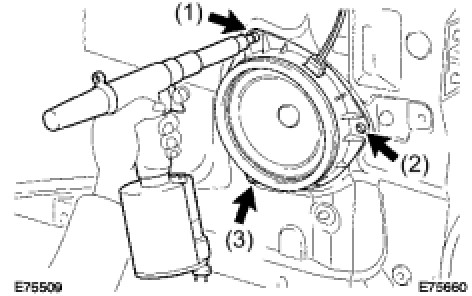

(a) Using an air riveter or hand riveter, install 3 new strike rivets on the front No. 1 speaker on the front door panel.

HINT

Install the new strike rivets in order as shown in the illustration.

NOTICE:

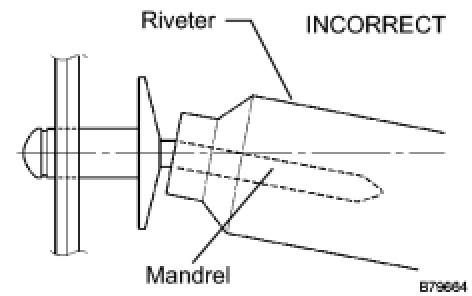

* Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

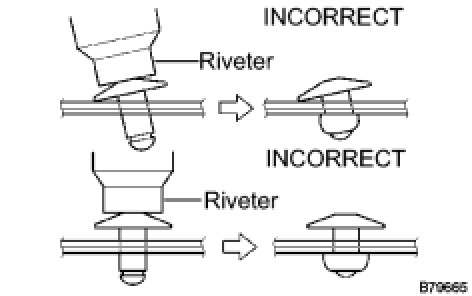

* Confirm that the rivets are seated properly against the speaker. Do not tilt the riveter when installing the rivet to the speaker. Do not leave any space between the rivet head and the speaker.

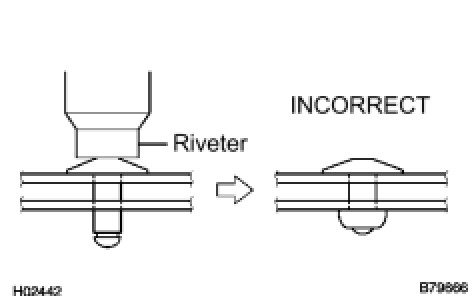

* Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.

(b) Connect the connector.

2. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY LH





(a) Install the front No. 2 speaker with the screw.

(b) Connect the connector

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

4. INSTALL ASSIST GRIP COVER LH Reassembly

5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly
