Tire Pressure Warning System





TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT

If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the relevant Diagnostic Trouble Code Test listed in the DTC chart.

TIRE PRESSURE WARNING SYSTEM

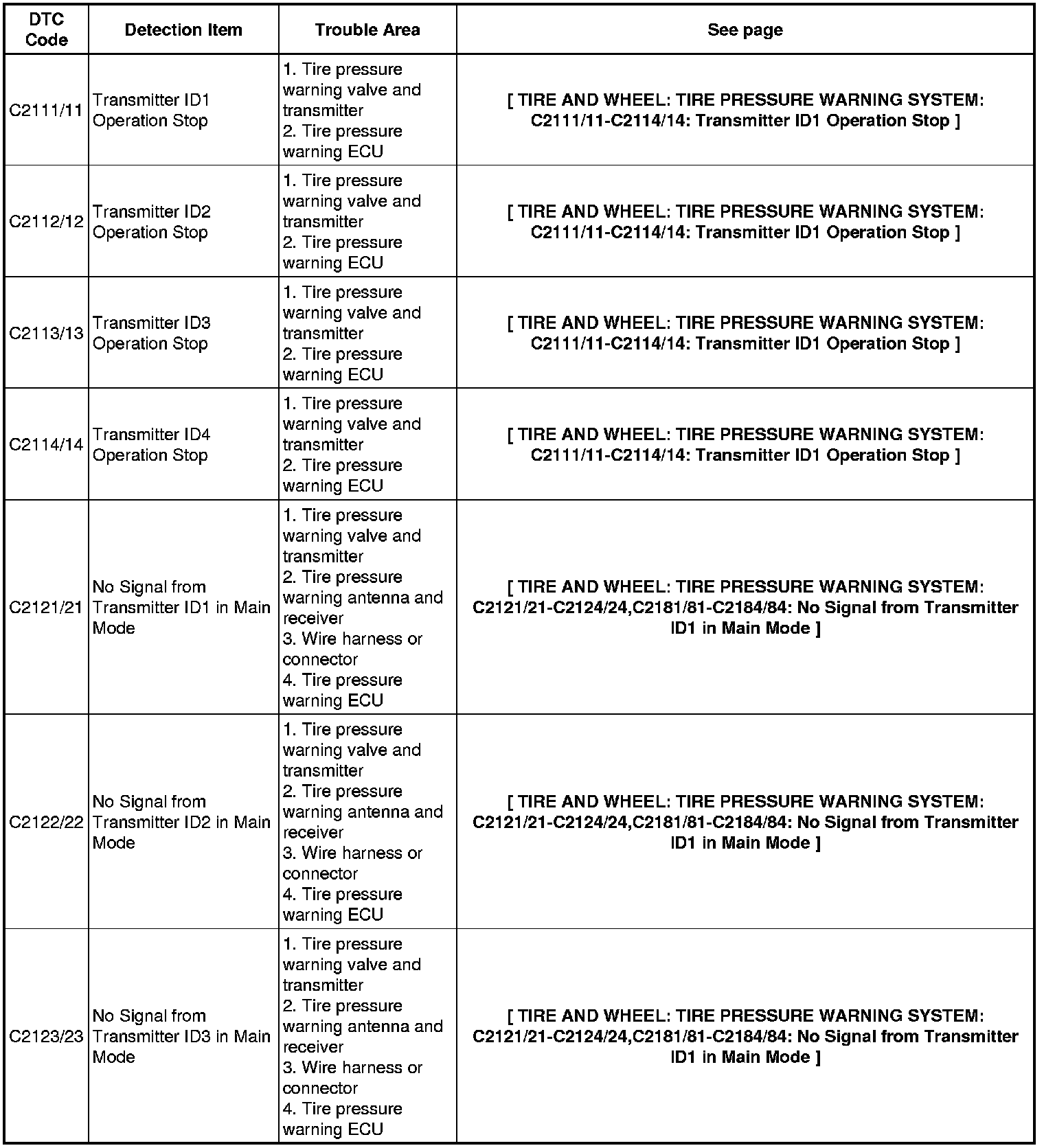

C2111/11-C2123/23:

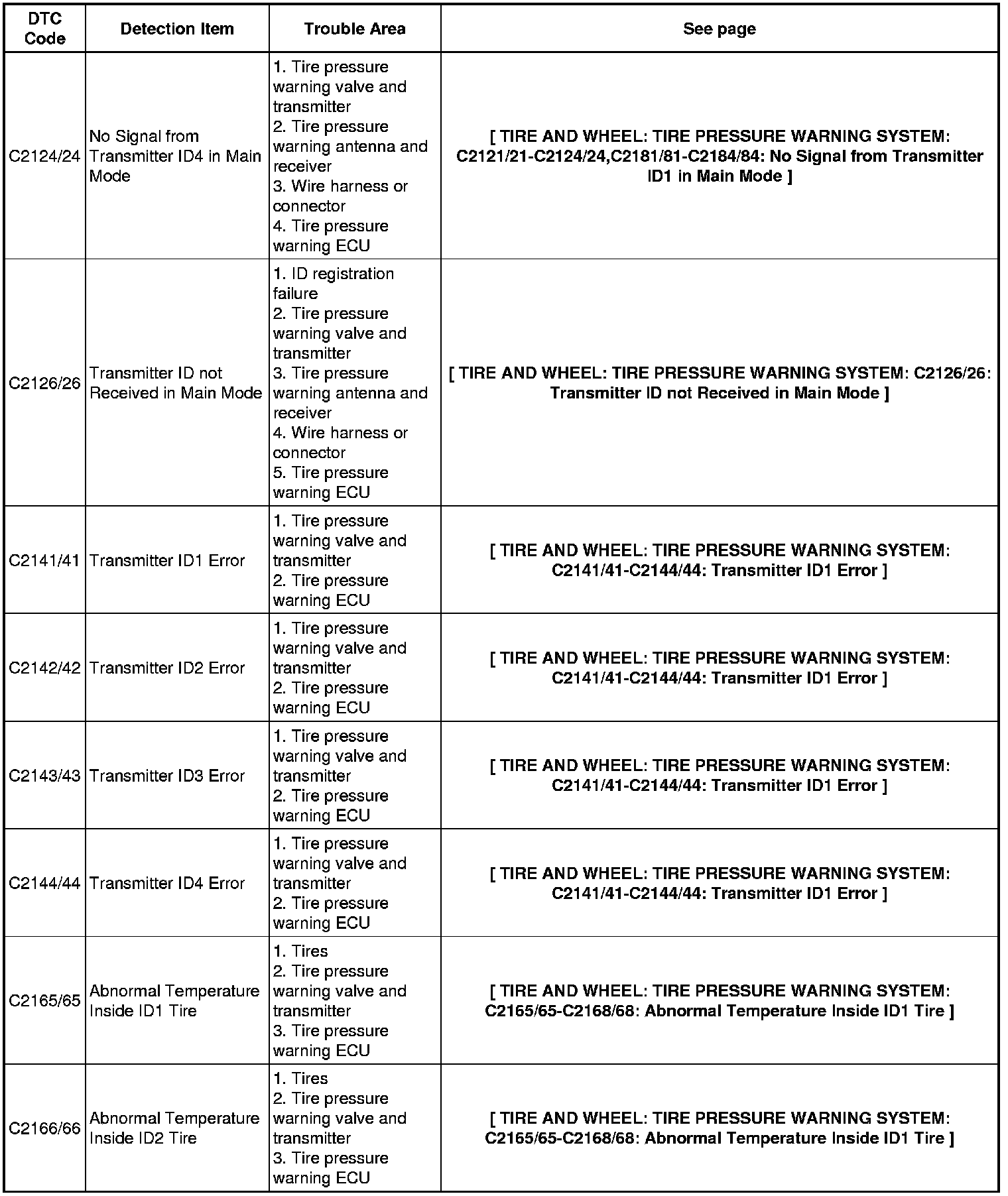

C2124/24-C2166/66:

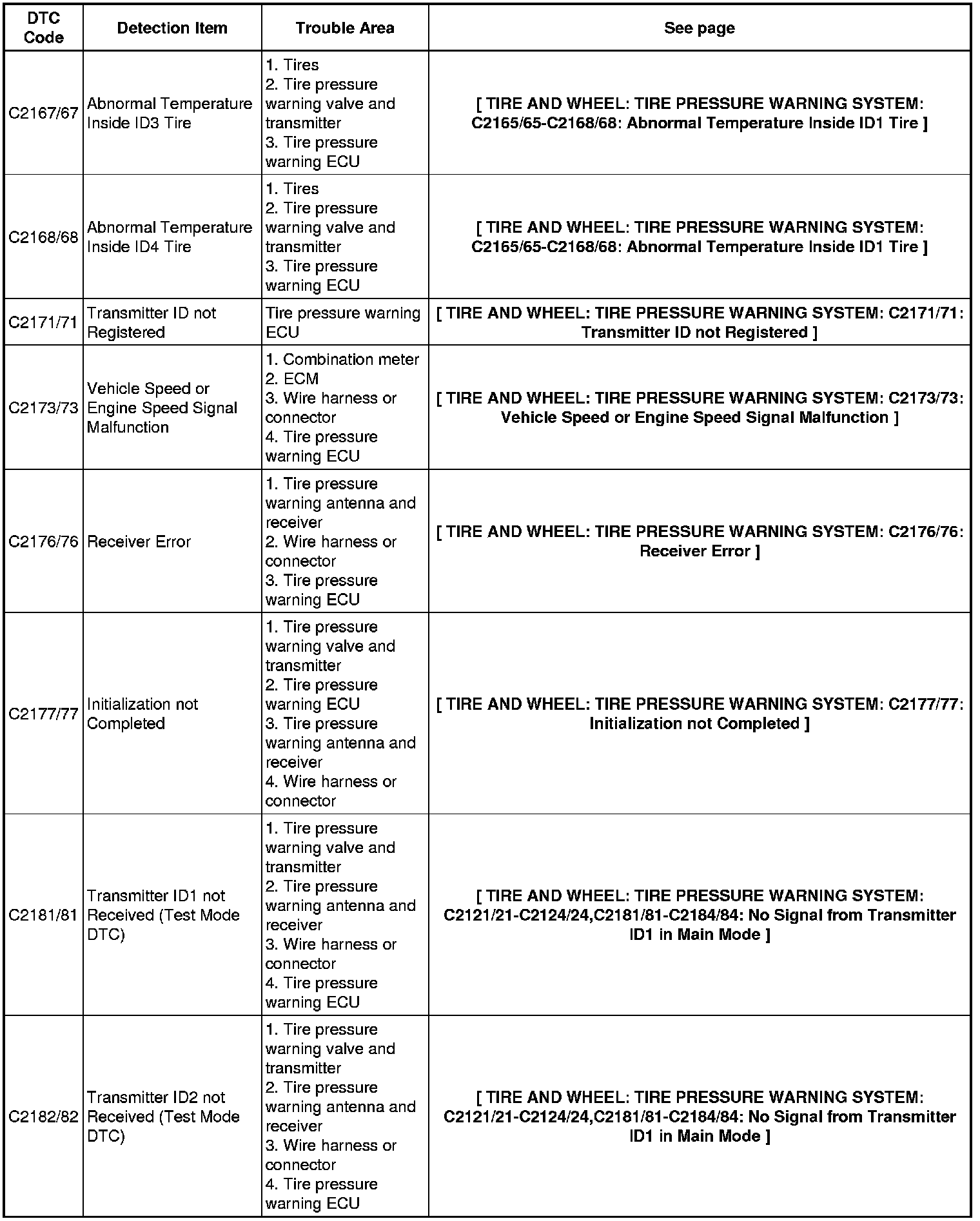

C2167/67-C2182/82:

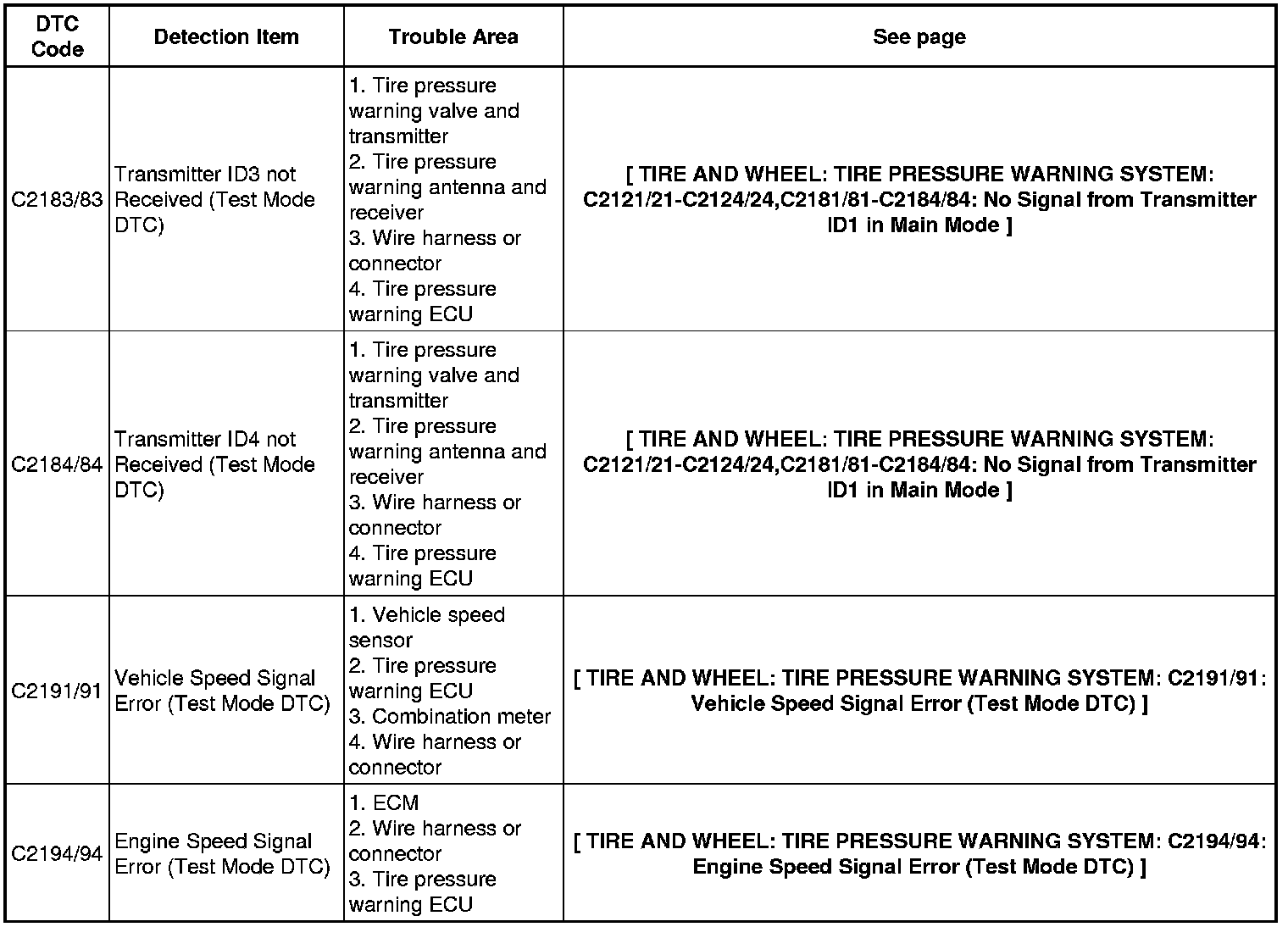

C2183/83-C2194/94:
