Engine Immobilizer System
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

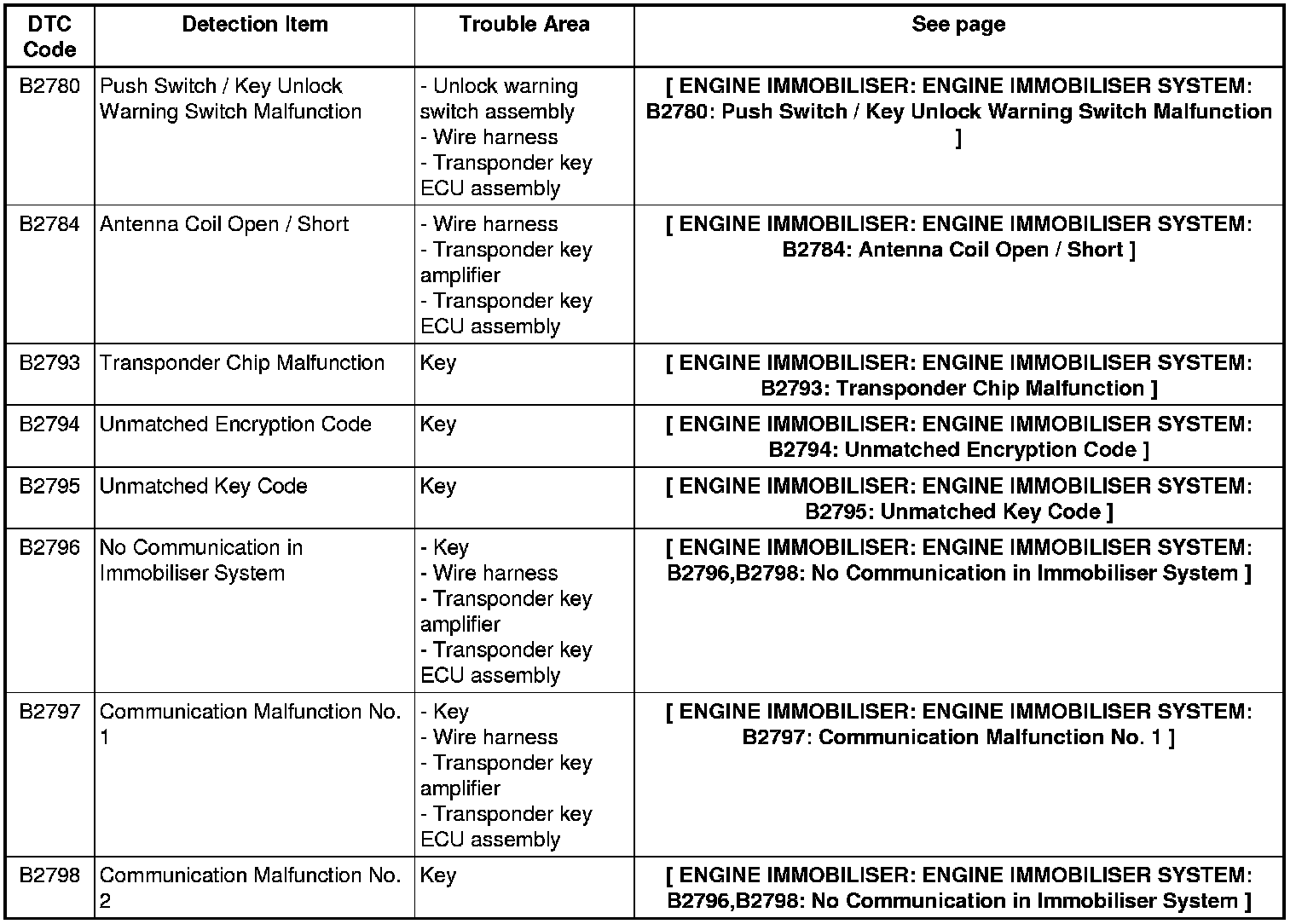

1. TRANSPONDER KEY ECU ASSEMBLY DIAGNOSTIC TROUBLE CODE CHART
Transponder Key ECU Assembly
TRANSPONDER KEY ECU ASSEMBLY:

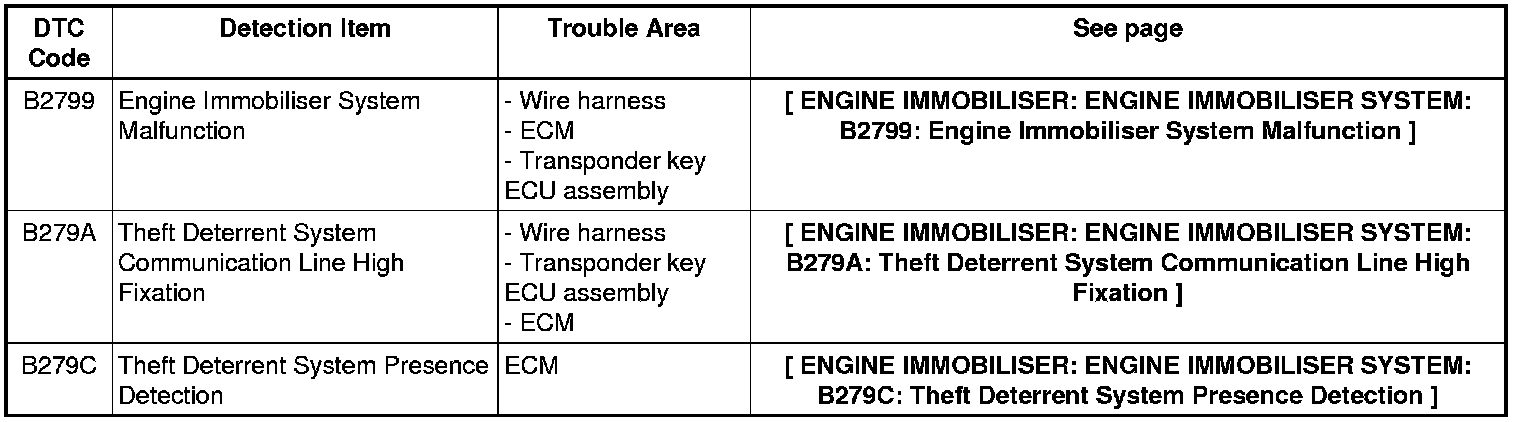

2. ECM DIAGNOSTIC TROUBLE CODE CHART
NOTICE:
The DTC for the immobiliser system is specified. If other codes are output, check the DTC chart of the SFI system.
ECM
