ABS (Antilock Brake System)
BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
NOTICE:
When removing parts, turn the ignition switch OFF.
HINT
* Using SST 09843-18040, connect terminals TC and CG of the DLC3.
* If any abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
* If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the applicable Diagnostic Trouble Code Test for respective "DTC Code" in the DTC chart.
* When two or more DTCs are recorded and the problem is not identified, perform circuit inspection of the other DTCs.
DTC chart of ABS:

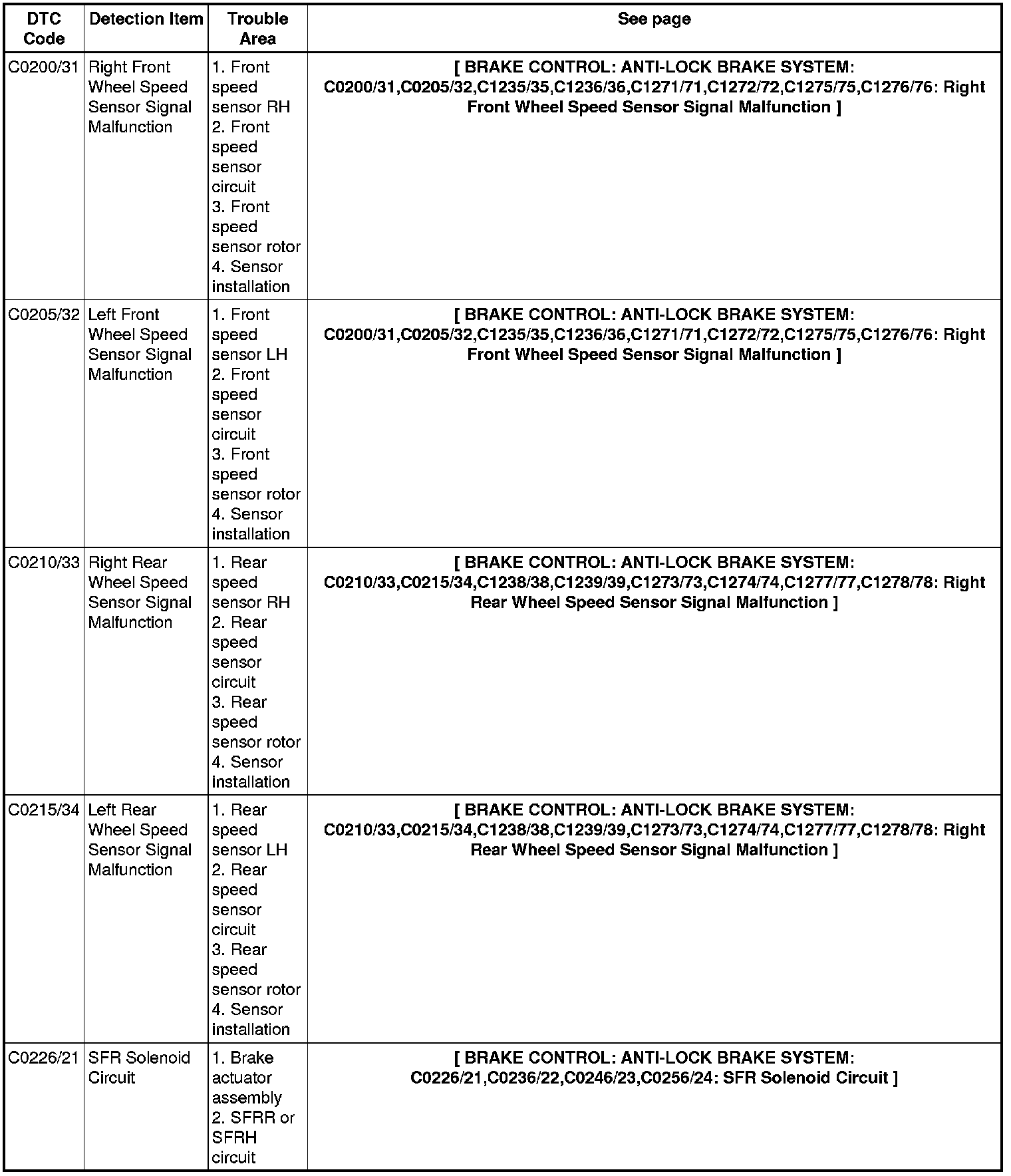

C0200/31-C0226/21:

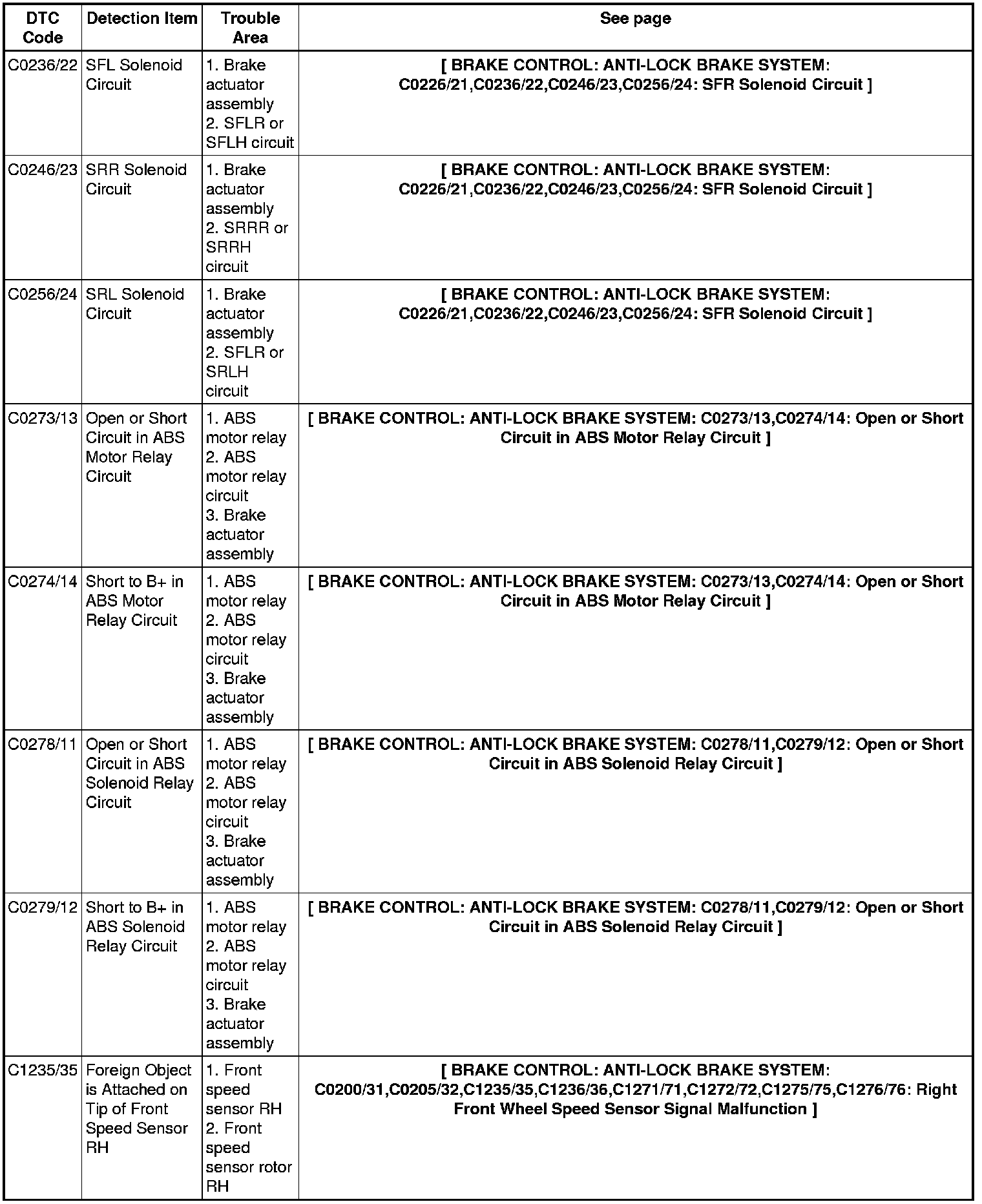

C0236/22-C1235/35:

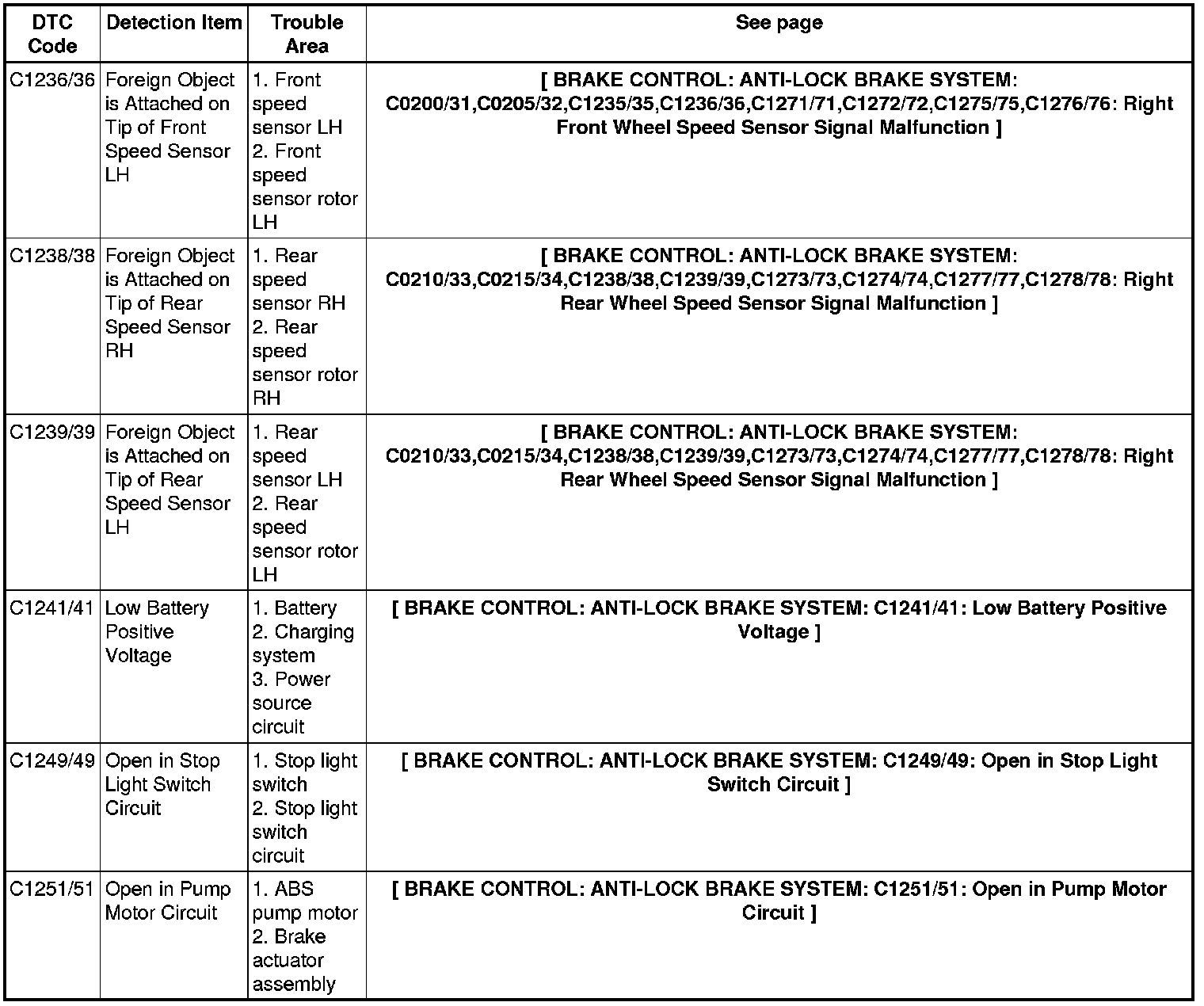

C1236/36-C1251/51:

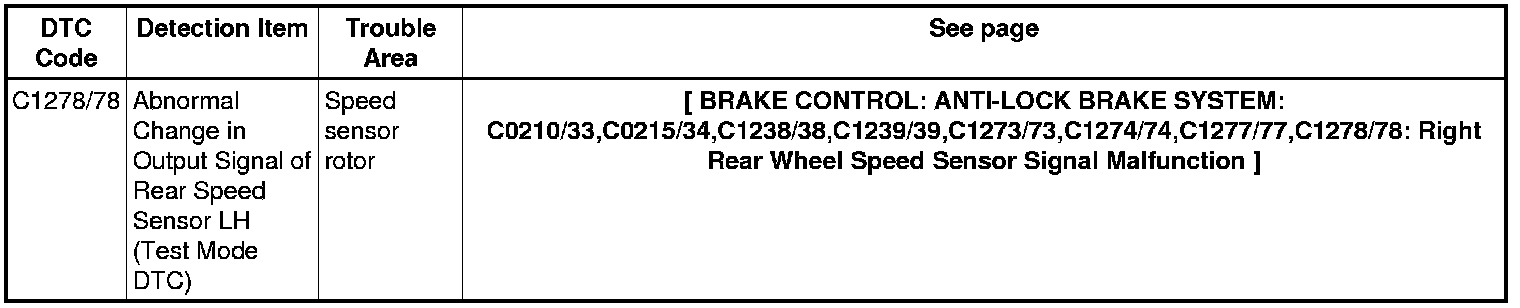

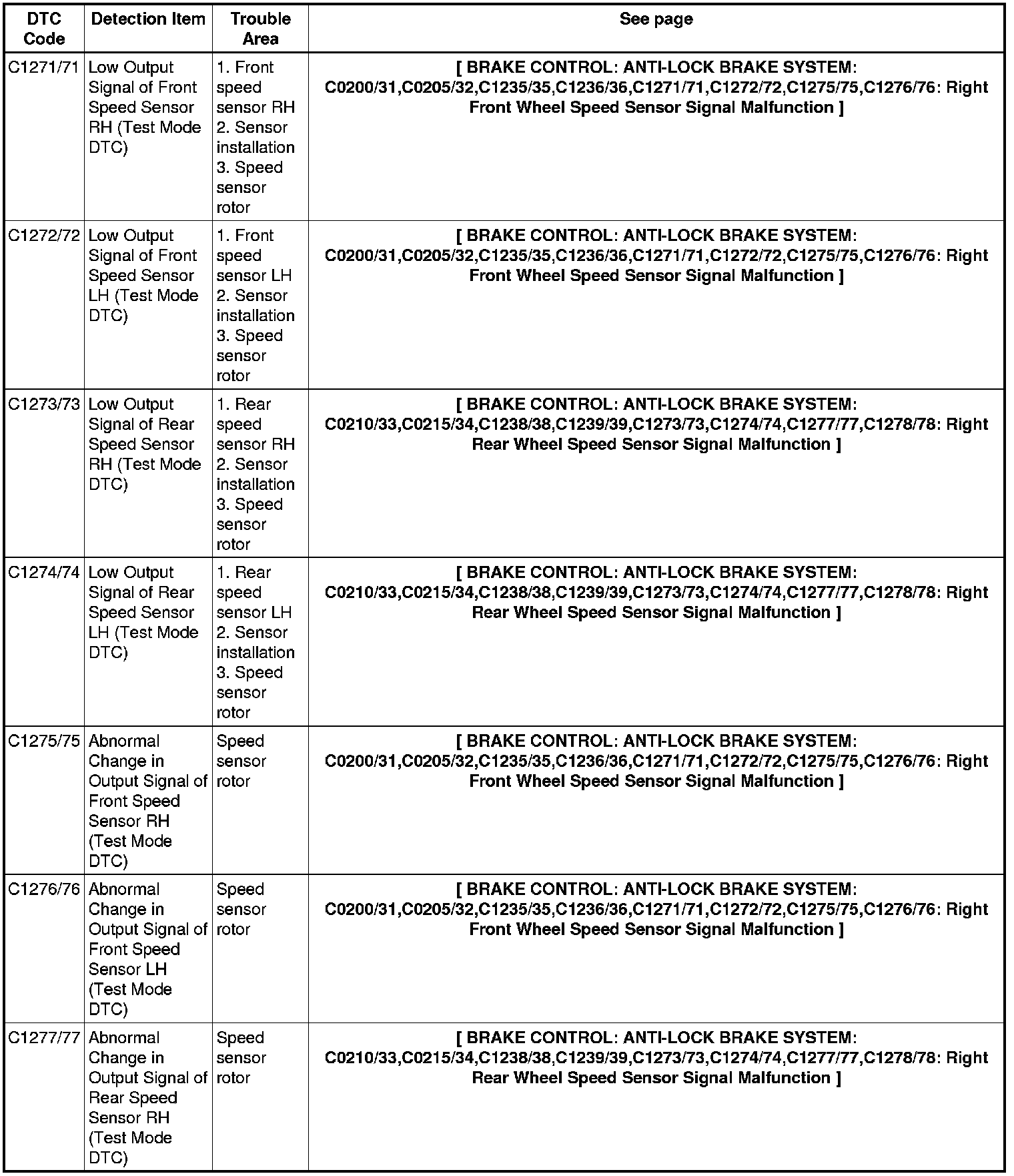

Test Mode DTC of ABS:
