WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

INSTALLATION

1. INSTALL WIPER RUBBER

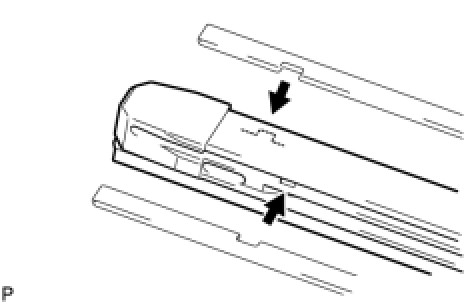

(a) Install the 2 wiper rubber backing plates onto the wiper rubber.
NOTICE:
- Align the protrusions on the wiper rubber with the notches in the backing plates.
- Align the curves of the backing plates with the curve of the glass.





(b) Install the wiper rubber onto the front wiper blade with the tip of the rubber (curved end) facing the axis of the wiper arm.
HINT: Firmly push the wiper rubber into the wiper blade to securely engage it.

2. INSTALL FRONT WIPER BLADE

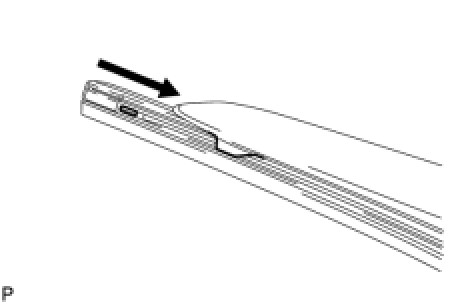

(a) Install the front wiper blade as shown in the illustration.
(b) Engage the front wiper blade holder.
