Heated Glass Element: Service and Repair

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER WIRE: REPAIR

REPAIR

1. IF NECESSARY, REPAIR DEFOGGER WIRE





(a) Clean the broken wire tips with grease, wax and silicone remover.

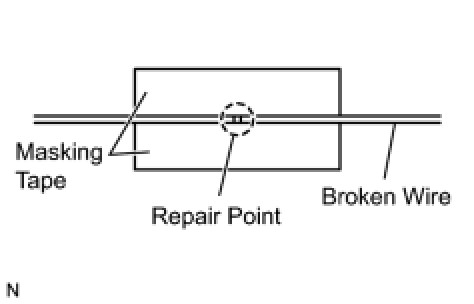

(b) Place masking tape along both sides of the wire.





(c) Thoroughly stir the repair agent ("DuPont" paste No. 4817 or the equivalent).

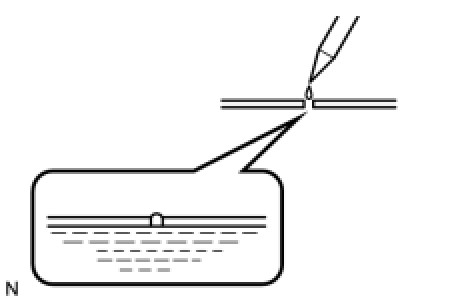

(d) Using a fine tip brush, apply a small amount of the agent to the wire.
(e) After a few minutes, remove the masking tape.
NOTICE: Do not repair the defogger wire again for at least 24 hours.
