Removal








C50 MANUAL TRANSAXLE: MANUAL TRANSAXLE ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE ENGINE AND TRANSAXLE
HINT: See the steps from "DISCHARGE FUEL SYSTEM PRESSURE" through "REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY" Removal.





2. REMOVE ENGINE MOVING CONTROL BRACKET

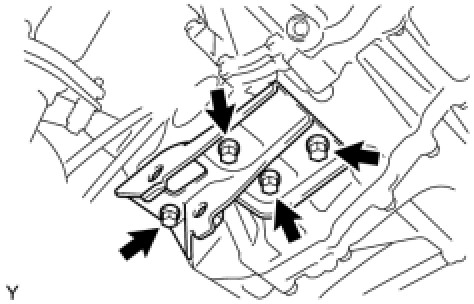

(a) Remove the 4 bolts and the engine moving control bracket.
3. REMOVE FLYWHEEL HOUSING SIDE COVER Removal
4. REMOVE STARTER ASSEMBLY Removal





5. REMOVE TRANSMISSION CONTROL CABLE BRACKET
(a) Remove the 2 bolts and the transmission control cable bracket.





6. REMOVE ENGINE MOUNTING BRACKET LH

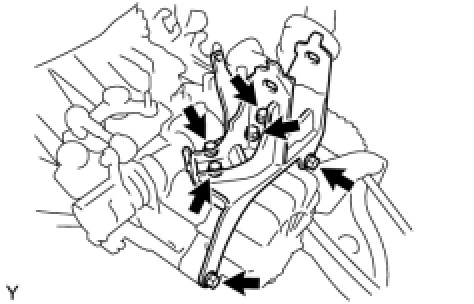

(a) Remove the 6 bolts and the engine mounting bracket LH.





7. REMOVE MANUAL TRANSAXLE ASSEMBLY
(a) Remove the 7 bolts and the manual transaxle.
