Disassembly

C50 MANUAL TRANSAXLE: SHIFT AND SELECT LEVER SHAFT: DISASSEMBLY

DISASSEMBLY





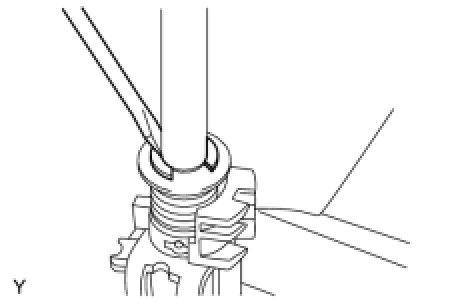

1. REMOVE NO. 2 SELECT SPRING SEAT
(a) Using a screwdriver, remove the select spring No. 2 seat E-ring, No. 2 select spring seat and No. 2 select return compression spring from the shift and select lever shaft.

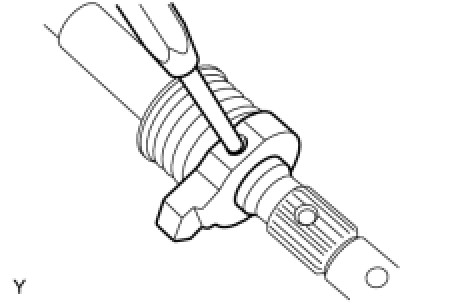

2. REMOVE NO. 2 SHIFT LEVER INNER
(a) Using a pin punch (dia5 mm) and a hammer, remove the shift inner lever slotted spring pin and No. 2 shift lever inner from the shift and select lever shaft.
HINT: Check the orientation of the No. 2 shift lever inner.

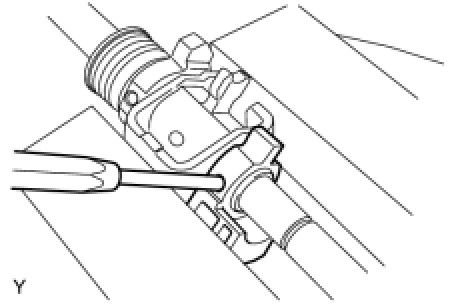

3. REMOVE NO. 1 SHIFT LEVER INNER
(a) Using a pin punch (dia5 mm) and a hammer, remove the shift inner lever slotted spring pin, No. 1 shift lever inner and shift inter lock plate from the shift and select lever shaft.
HINT: Check the orientation of the No. 1 shift lever inner.

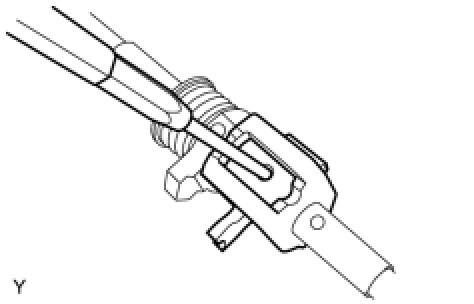

4. REMOVE SELECT INNER LEVER
(a) Using a pin punch (dia5 mm) and a hammer, remove the select inner lever slotted spring pin, select inner lever, No. 1 select return compression spring and No. 1 select spring seat from the shift and select lever shaft.
HINT: Check the orientation of the select inner lever.

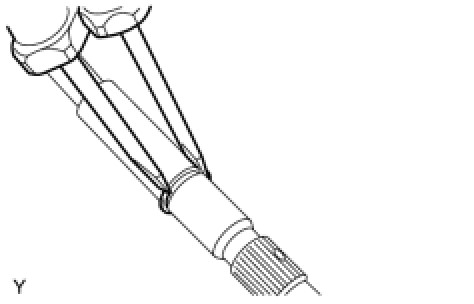

5. REMOVE SELECT SPRING NO.1 SEAT SHAFT SNAP RING
(a) Using 2 screwdrivers and a hammer, remove the select spring No. 1 seat shaft snap ring.
