Reassembly

CLUTCH: CLUTCH RELEASE CYLINDER: REASSEMBLY

REASSEMBLY

1. INSTALL RELEASE CYLINDER BLEEDER PLUG
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
2. INSTALL CLUTCH RELEASE CYLINDER KIT
(a) Install the bleeder plug cap onto the bleeder plug.
(b) Install the spring onto the cylinder body.

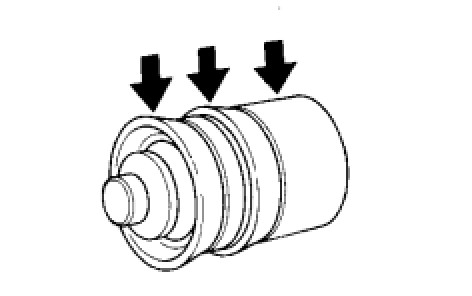

(c) Coat a new piston with lithium soap base glycol grease, as shown in the illustration.
(d) Install the piston onto the cylinder body.
NOTICE: Do not damage the inside of the cylinder body.

(e) Install the push rod onto the cylinder body.
(f) Install the boot onto the cylinder body.
