Wiring Harness: Testing and Inspection

U341E AUTOMATIC TRANSAXLE: TRANSMISSION WIRE: INSPECTION

INSPECTION

1. INSPECT TRANSMISSION WIRE





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

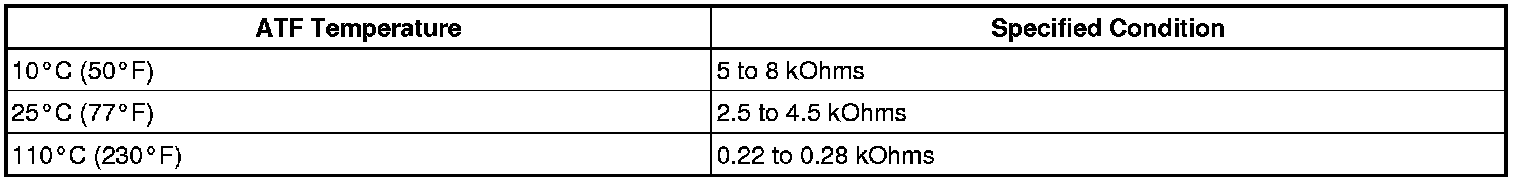

HINT: If the resistance is out of the specified range with the ATF temperature shown in the table below, the driveability of the vehicle may decrease.





If the resistance is not as specified, replace the transmission wire.
