Disposal

SUSPENSION: FRONT SHOCK ABSORBER WITH COIL SPRING: DISPOSAL

DISPOSAL





1. DISPOSE OF FRONT SHOCK ABSORBER
(a) Fully extend the shock absorber piston rod, and fix it at an angle in a vise or similar tool.

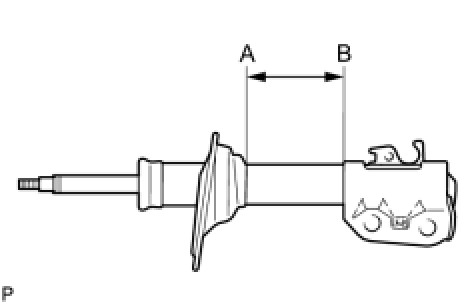

(b) Using a drill or similar tool, slowly make a hole in the area (A-B) shown in the illustration to discharge the gas inside.
NOTICE:
- The gas is colorless, odorless and harmless.
- Since the discharging gas may cause chips to scatter, cover the drill with a shop rag or piece of cloth when making the hole.
