xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Power Steering System
Power Steering System
POWER STEERING

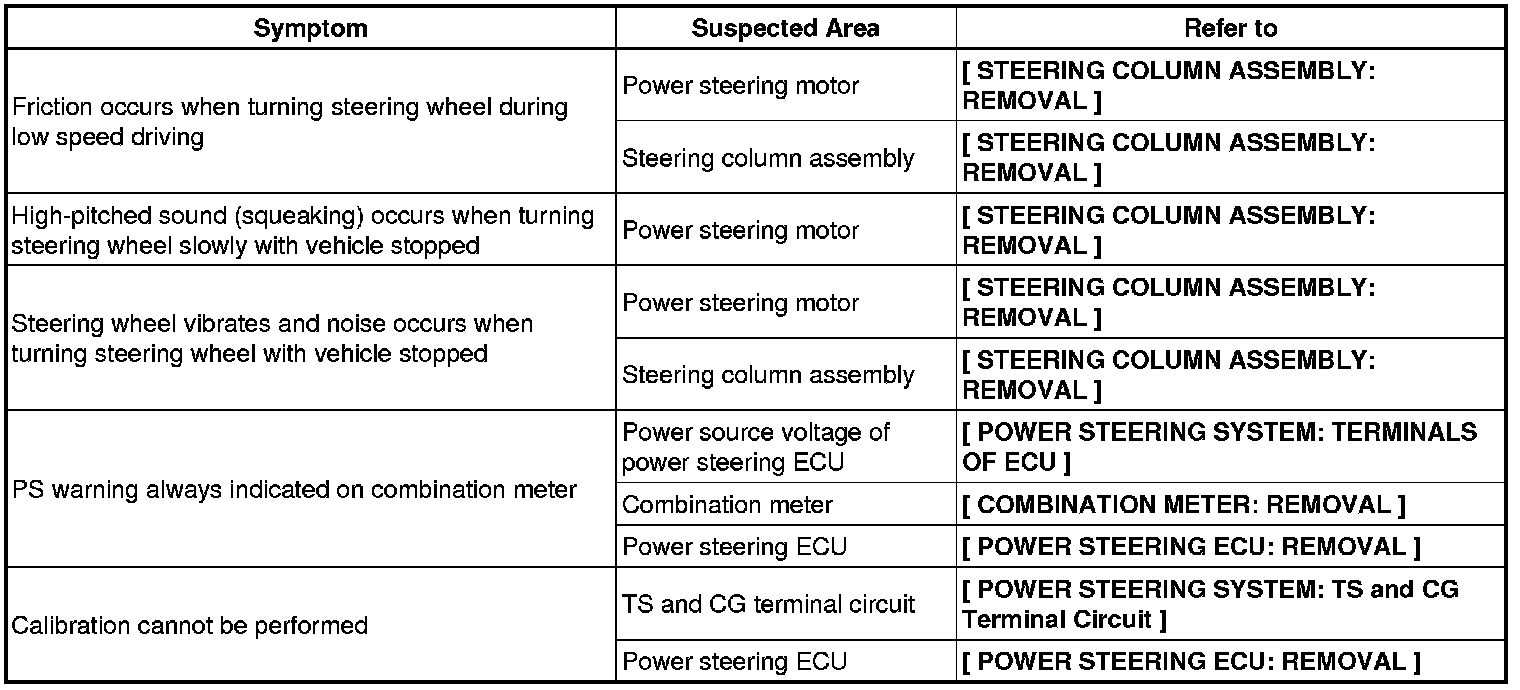

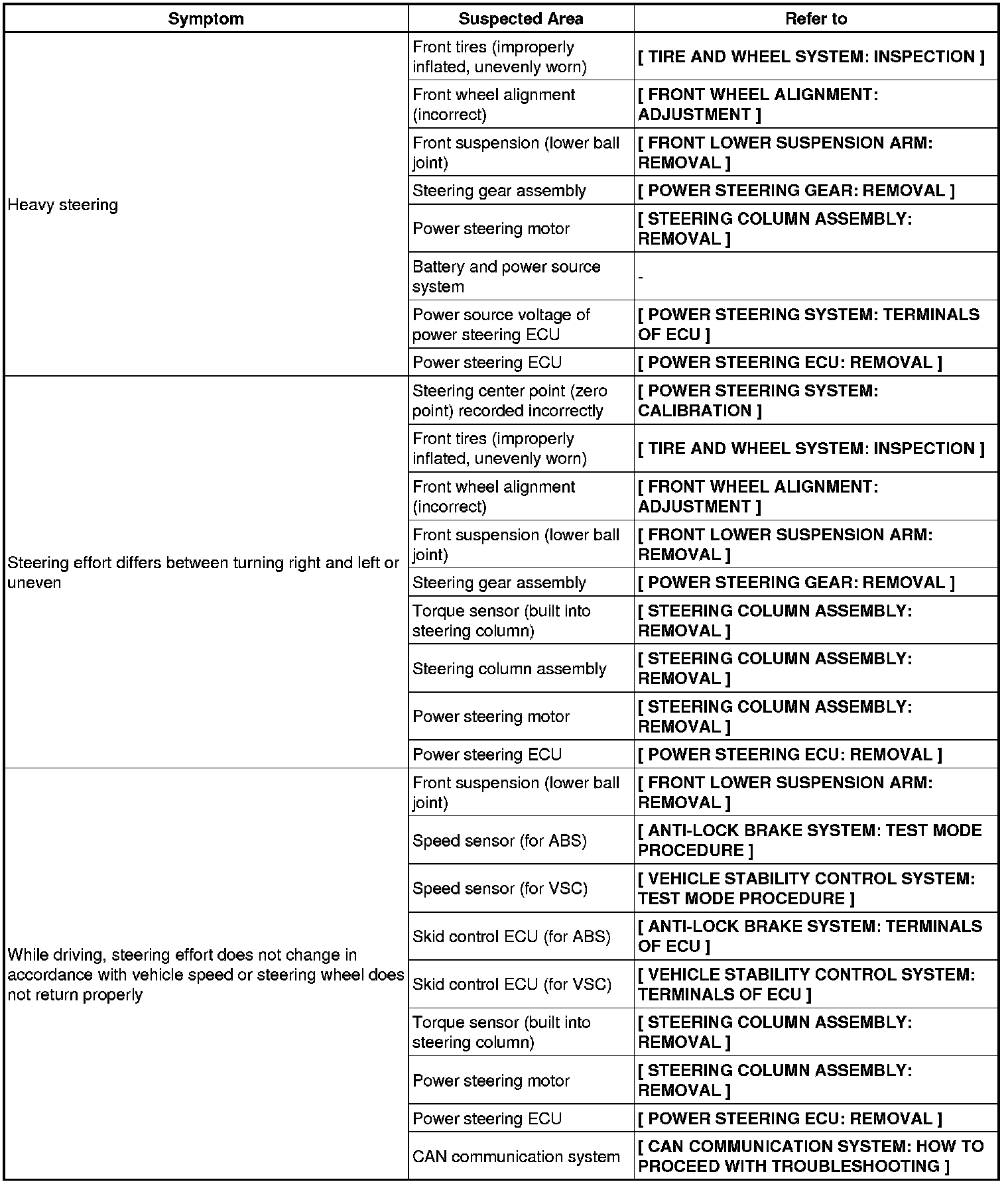

: POWER STEERING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
Power steering
system
