Home >> Scion >> 2009 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Standard Bolt - Specified Torque For Standard Bolts

Standard Bolt - Specified Torque For Standard Bolts








SERVICE SPECIFICATIONS: STANDARD BOLT: SPECIFIED TORQUE FOR STANDARD BOLTS

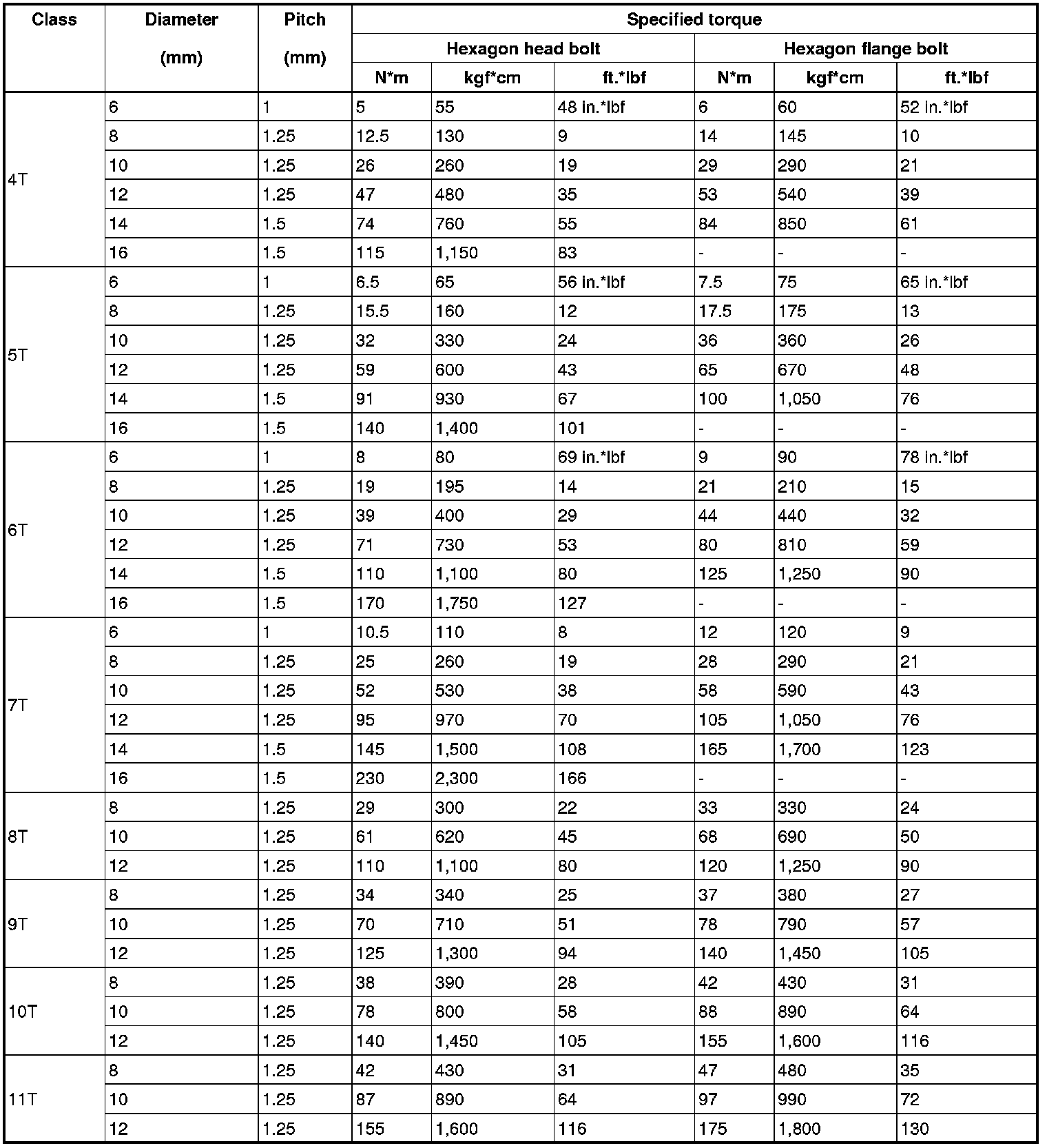

SPECIFIED TORQUE FOR STANDARD BOLTS
