Throttle Body
Throttle Body

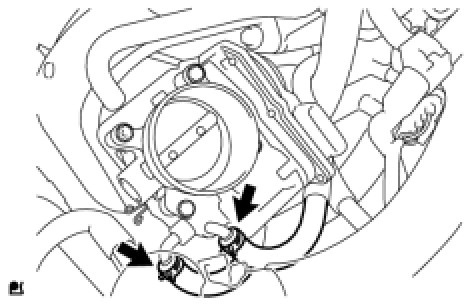

Install the throttle body assembly with the 2 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
