Torque Specifications

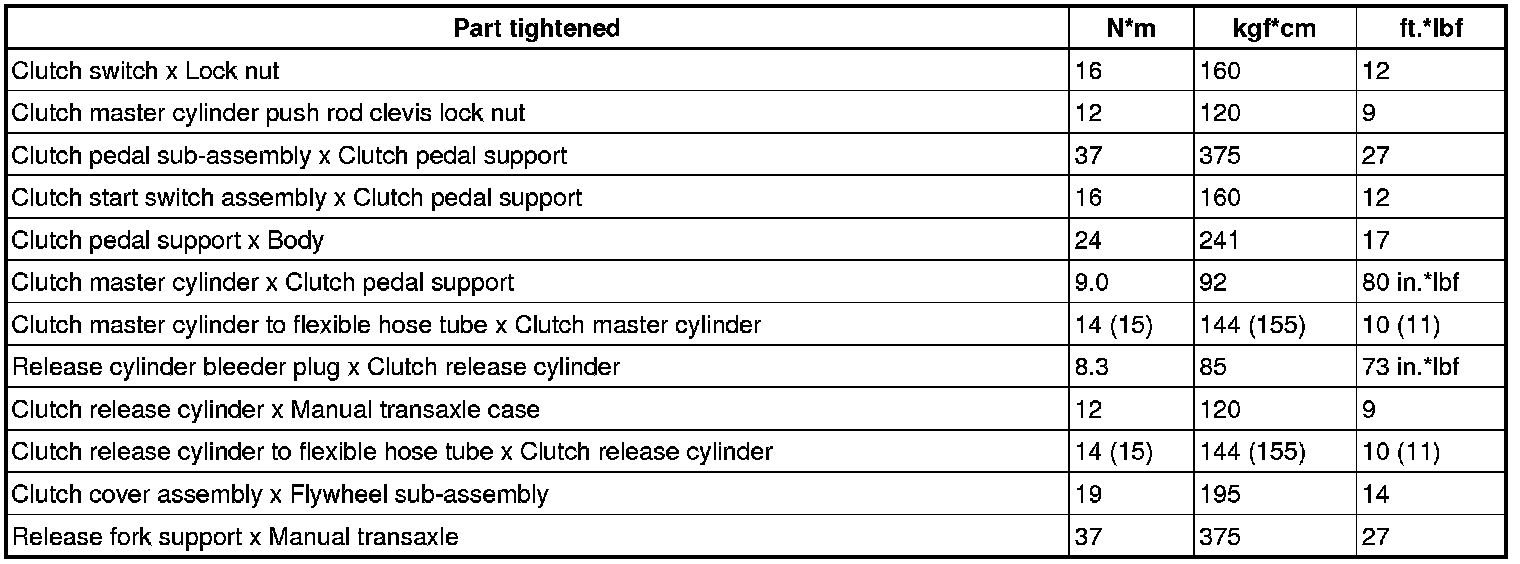

SERVICE SPECIFICATIONS: CLUTCH: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS





( ): for use without union nut wrench
