Engine Hood / Door








SERVICE SPECIFICATIONS: ENGINE HOOD / DOOR: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

HOOD

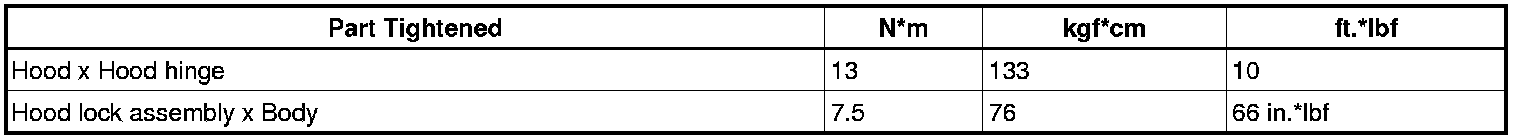

HOOD LOCK CONTROL CABLE ASSEMBLY





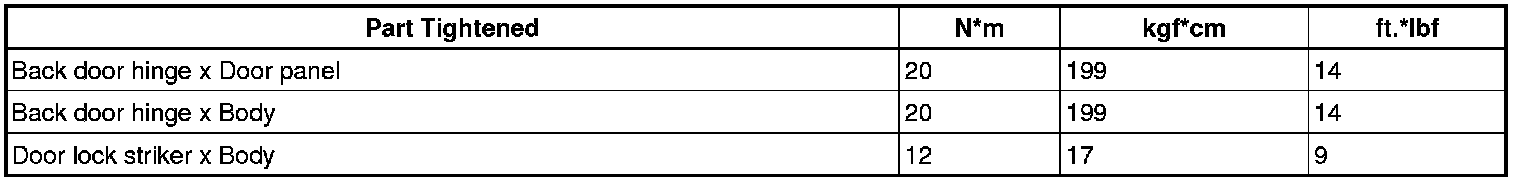

FRONT DOOR

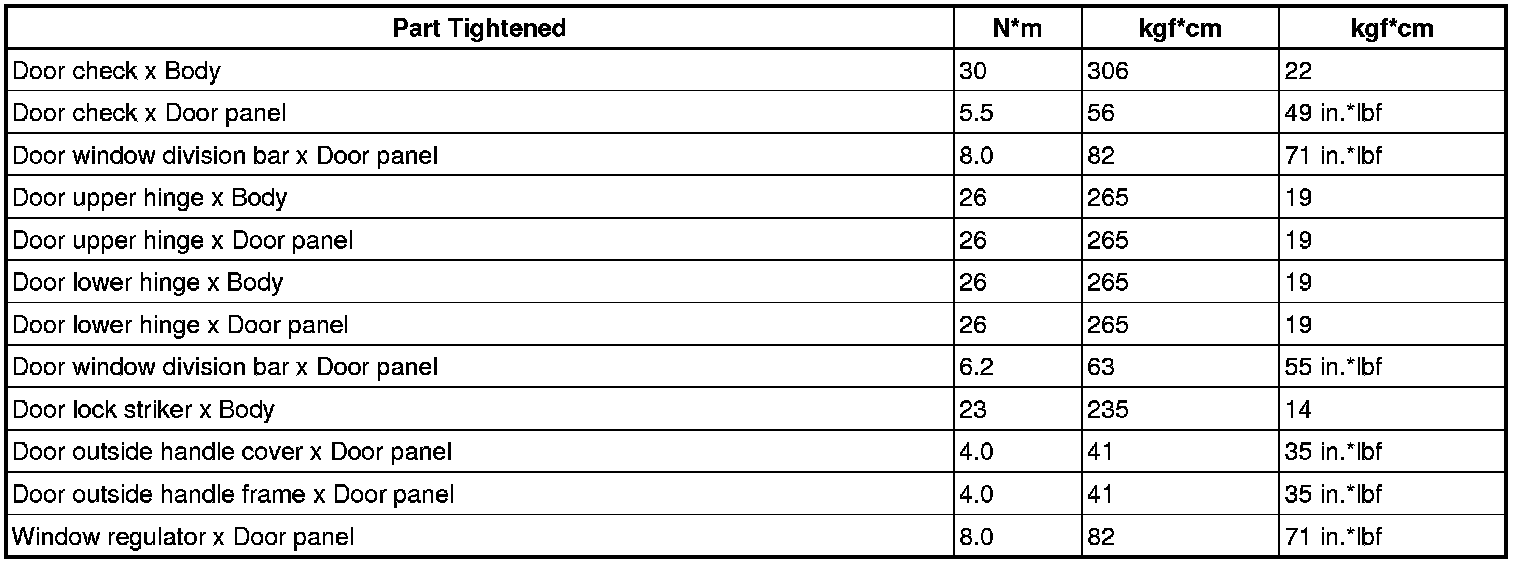

REAR DOOR

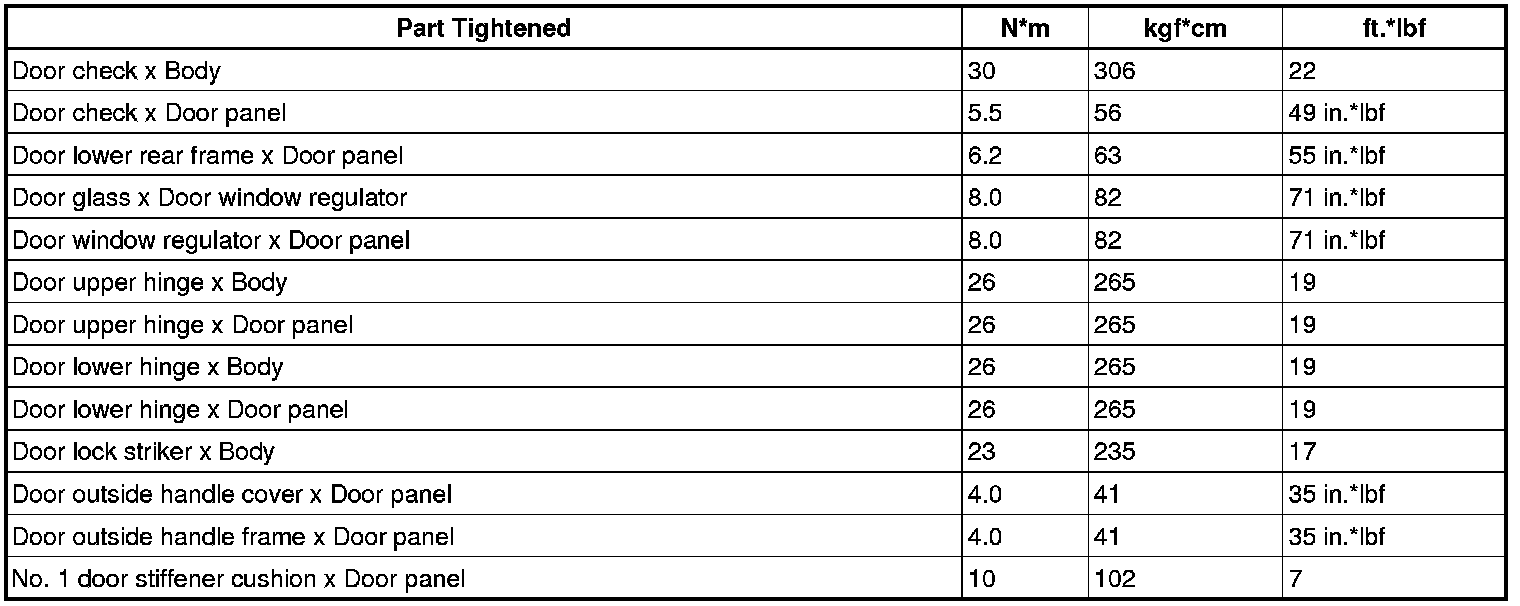

BACK DOOR

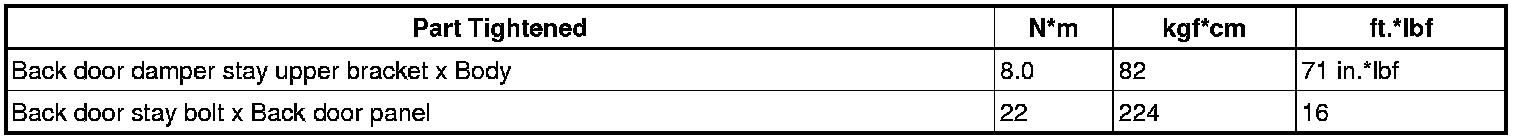

BACK DOOR SUPPORT
