Installation

2ZR-FE LUBRICATION: OIL PRESSURE SWITCH: INSTALLATION

INSTALLATION

1. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

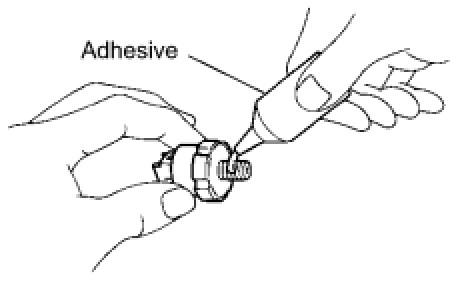

(a) Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive:
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

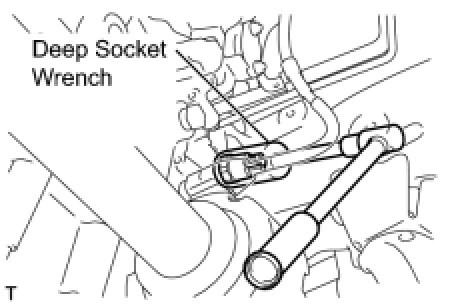

(b) Using a 24 mm deep socket wrench, install the oil pressure switch.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
NOTICE: Do not start the engine for at least 1 hour after installation.

(c) Connect the oil pressure switch connector.
2. INSPECT FOR OIL LEAK
3. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
