Seat Belt: Testing and Inspection

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH





(a) for Driver Side:
(1) Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.

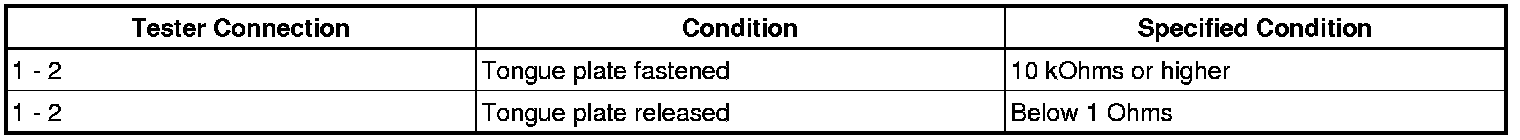

Standard resistance:






If the result is not as specified, replace the front seat inner belt.





(b) for Front Passenger Side:
(1) Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.

Standard resistance:






If the result is not as specified, replace the front seat inner belt.
