Component Tests and General Diagnostics

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: Diagnosis Circuit

Diagnosis Circuit

DESCRIPTION

DTC output mode is set by connecting terminals TC and CG of the DLC3.
DTCs are displayed by blinking of the SRS warning light.
HINT:
- When each warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in each ECU is suspected.
- A DTC output mode signal is transmitted through CAN communication system to each ECU including the center airbag sensor. Thus when all systems do not enter DTC output mode, there may be an ECM malfunction.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if a CAN communication system DTC is output Diagnosis System.

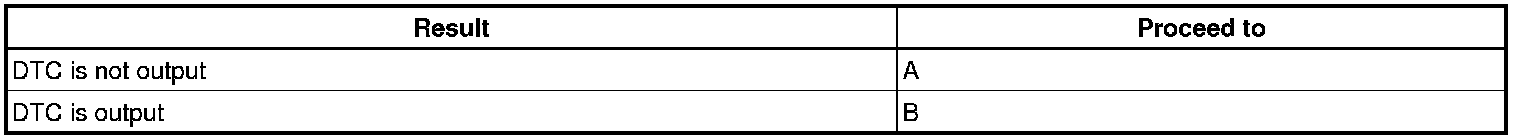

Result





B -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
A -- Continue to next step.

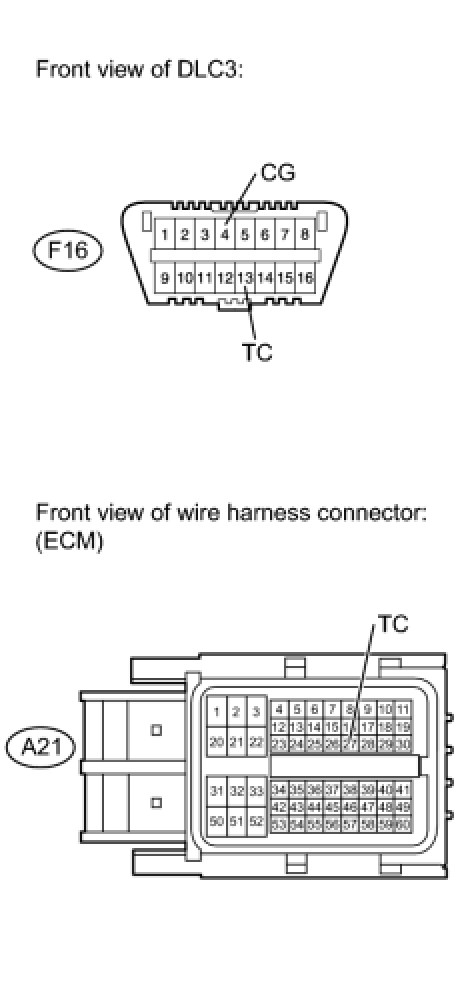

2. CHECK HARNESS AND CONNECTOR (DLC3 - ECM)




(a) Turn the ignition switch to OFF.
(b) Disconnect the connector from the ECM.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

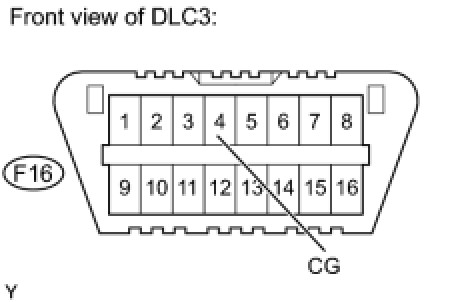

3. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

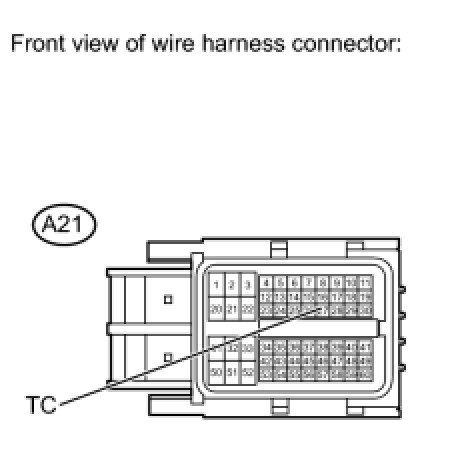

4. CHECK HARNESS AND CONNECTOR (TC OF ECM - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
OK -- REPLACE ECM
