Removal

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
NOTICE: Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT SEAT ASSEMBLY RH Removal
3. REMOVE OCCUPANT CLASSIFICATION ECU

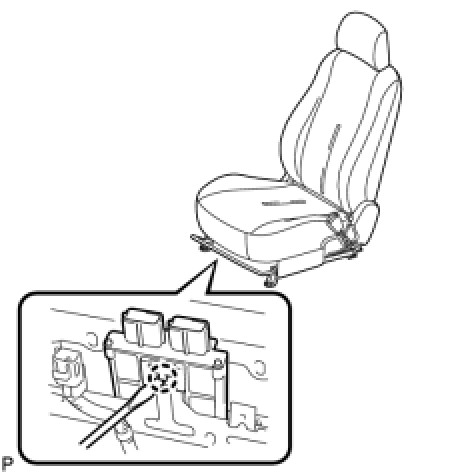

(a) Disconnect the connectors from the occupant classification ECU.
(b) Using a screwdriver, disengage the claw and remove the occupant classification ECU.
