Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: REMOVAL

REMOVAL
NOTICE: Before removing the tire pressure warning ECU, read the registered transmitter ID of all wheels and write them down to use for re-registration of transmitter ID Registration.

1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal





2. REMOVE TIRE PRESSURE WARNING ECU

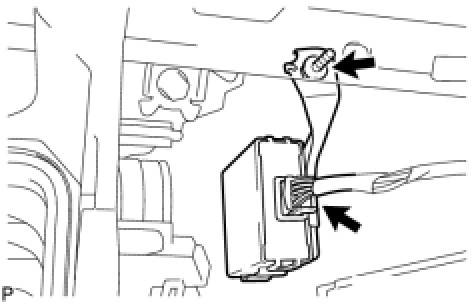

(a) Disconnect the tire pressure warning ECU connector.
(b) Remove the screw and remove the tire pressure warning ECU.
