Scion
>>
2009
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Relay
>>
Locations
Ignition Relay: Locations
2ZR-FE IGNITION: IGNITION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION

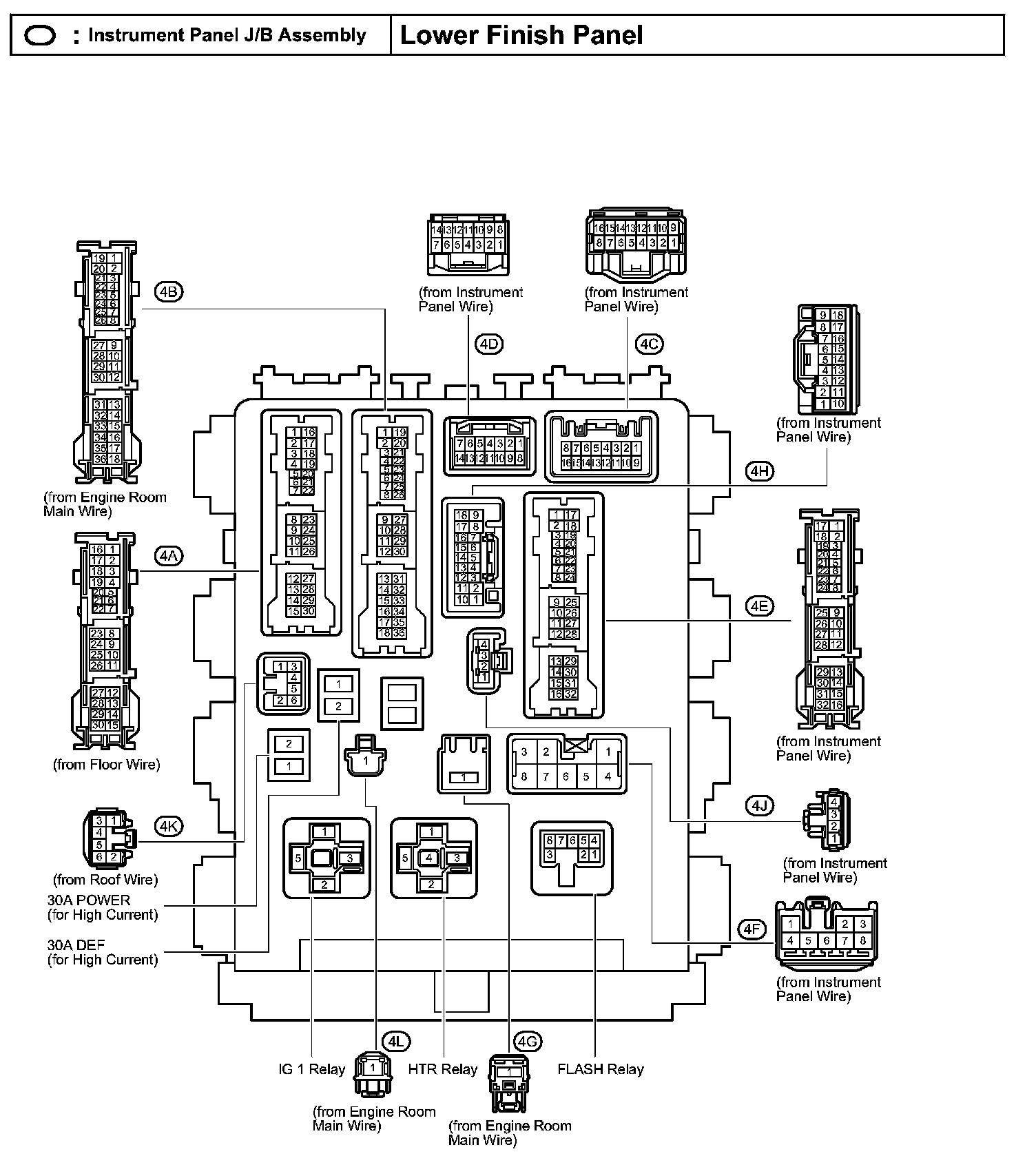

Instrument Panel J/B Assembly - Lower Finish Panel:
