Ignition System: Description and Operation








2ZR-FE IGNITION: IGNITION SYSTEM: SYSTEM DIAGRAM

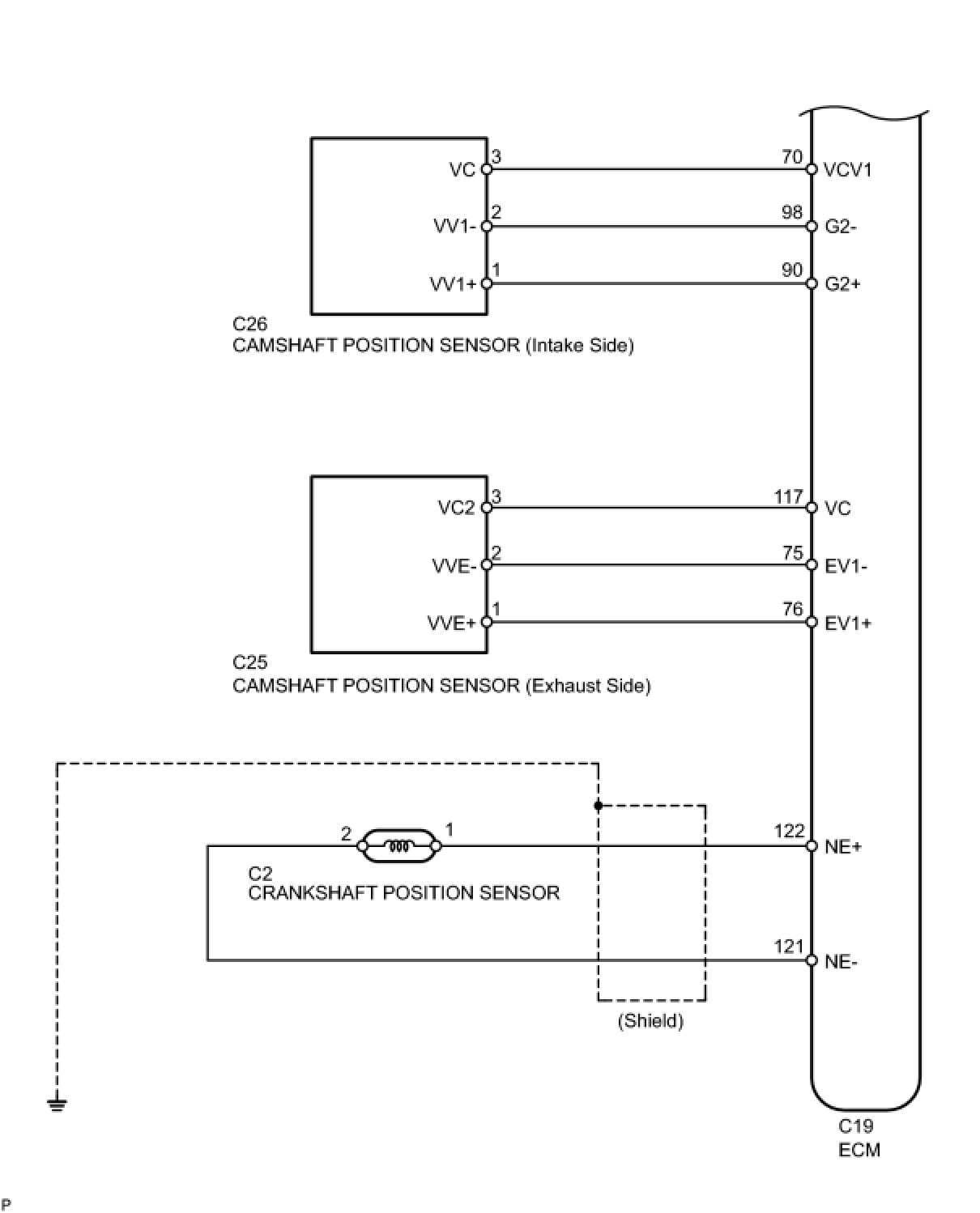

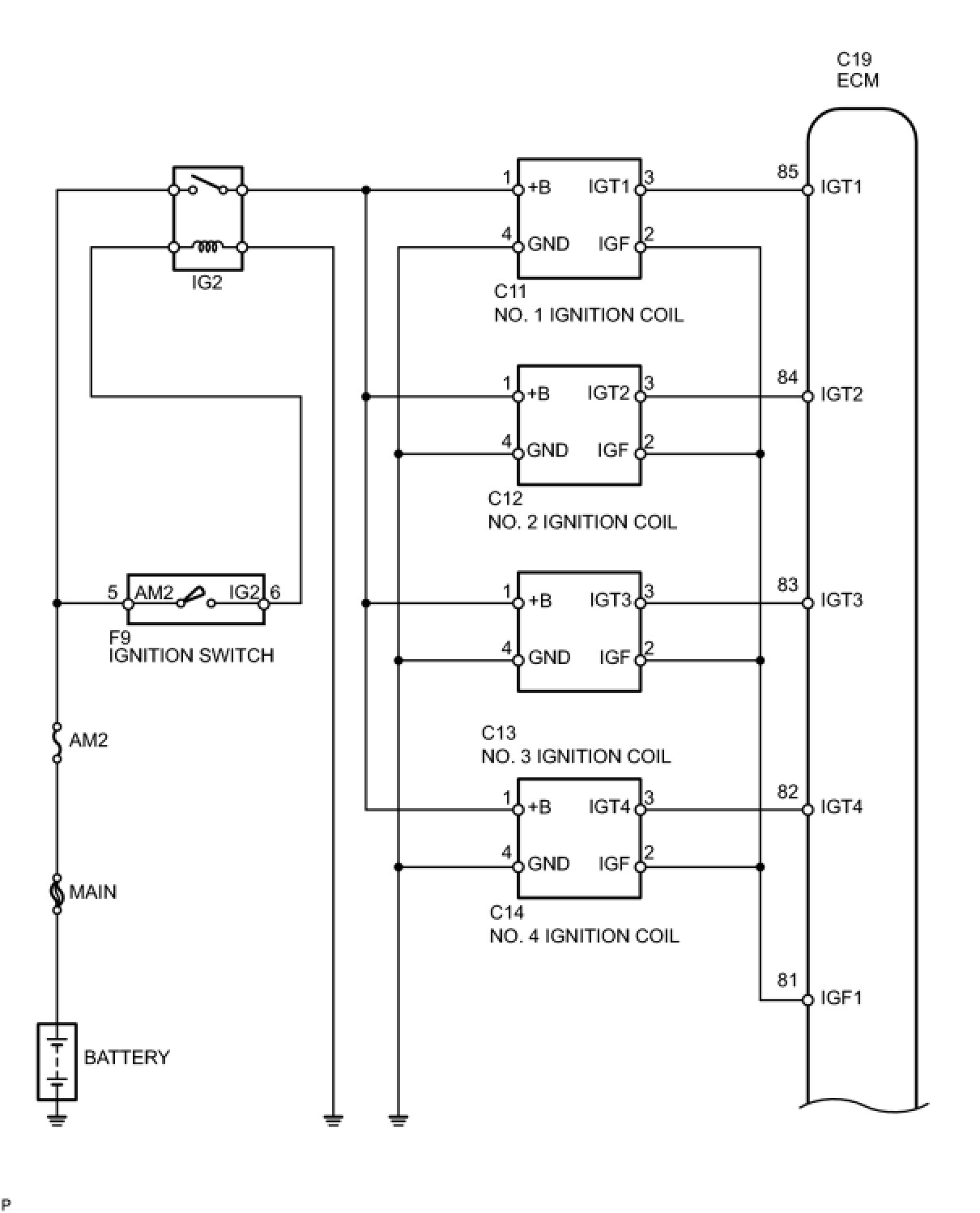

SYSTEM DIAGRAM
