2ZR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
2. REMOVE UPPER CONSOLE PANEL Removal
3. REMOVE REAR CONSOLE BOX COVER Removal
4. REMOVE CONSOLE BOX CARPET Removal
5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY Removal
6. REMOVE FRONT CONSOLE BOX Removal
7. REMOVE HEATED OXYGEN SENSOR





(a) Disconnect the heated oxygen sensor connector.
(b) Remove the grommet and pull the sensor connector out of the cabin through the floor panel.





(c) Remove the wire harness clamp bracket.

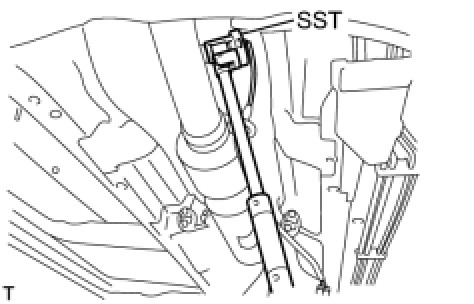

(d) Using SST, remove heated oxygen sensor.
SST: 09224-00010
