2ZR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

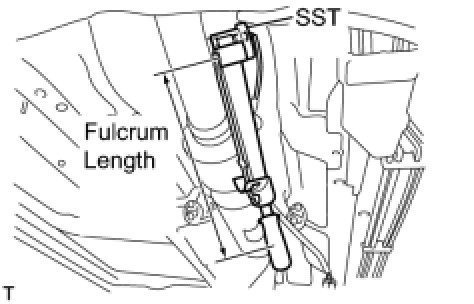

(a) Using SST, install the heated oxygen sensor onto the front exhaust pipe.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
NOTICE:
- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.81 in.) and SST of 30 mm (1.18 in.) ( Service Precautions).
- This torque value is effective when SST is parallel to the torque wrench.

(b) Pass the sensor connector through the floor panel and install the grommet.

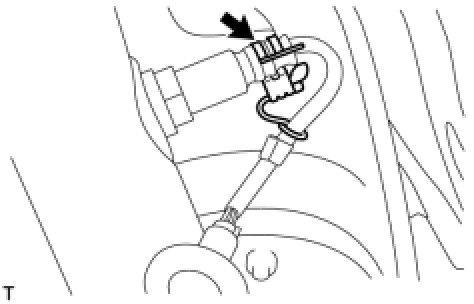

(d) Connect the heated oxygen sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
3. INSTALL FRONT CONSOLE BOX Installation
4. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY Installation
5. INSTALL CONSOLE BOX CARPET Installation
6. INSTALL REAR CONSOLE BOX COVER Installation
7. INSTALL UPPER CONSOLE PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
