Problem Symptoms Table








CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

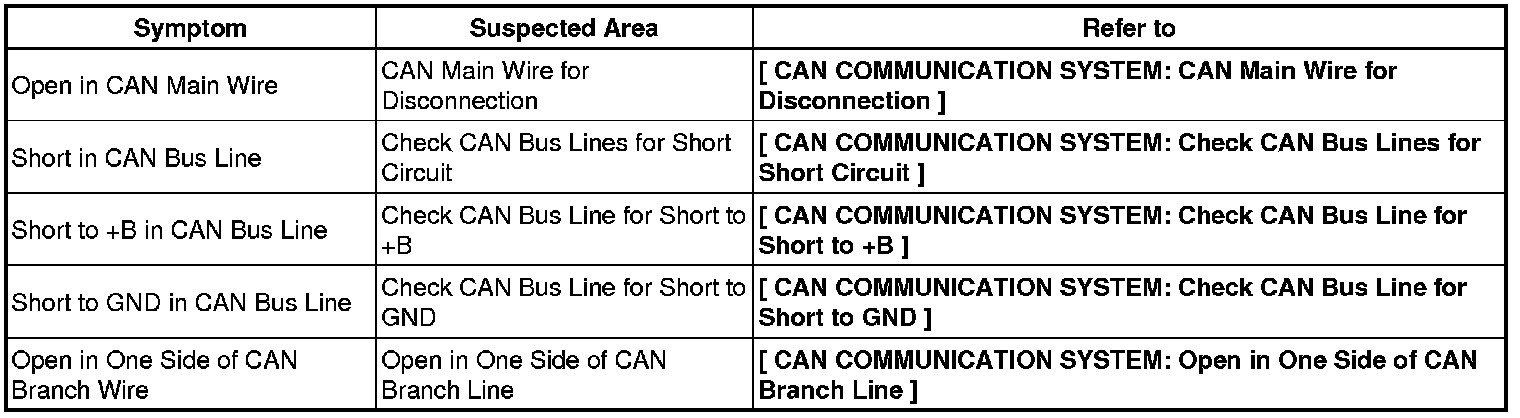

RESULT LIST OF CHECK CAN BUS LINE

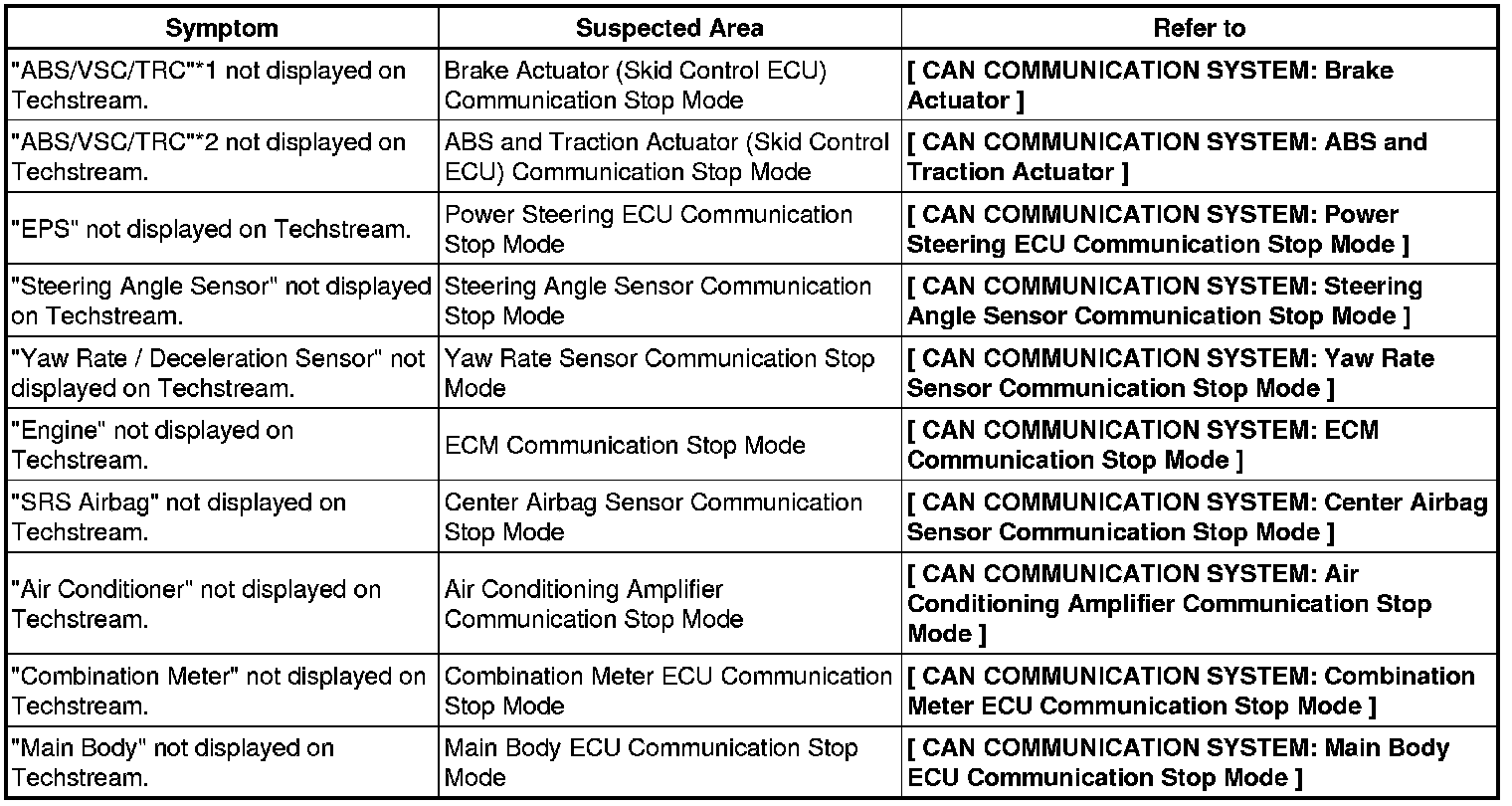

COMMUNICATION STOP MODE TABLE





HINT:
*1: w/ ABS
*2: w/ VSC
