OTHER SYSTEM: POWER OUTLET SOCKET: INSTALLATION

INSTALLATION

1. INSTALL POWER OUTLET SOCKET COVER

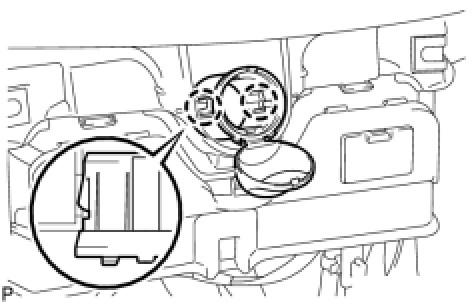

(a) Engage the 2 claws and install a new power outlet socket cover.
2. INSTALL POWER OUTLET SOCKET ASSEMBLY

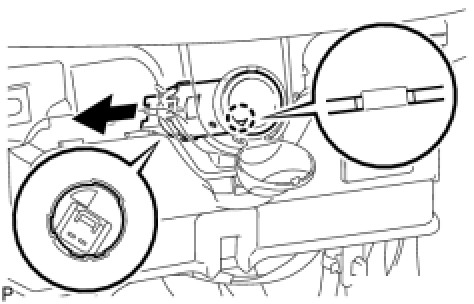

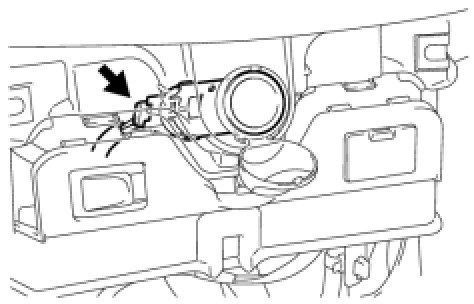

(a) Align the protrusion of the power outlet socket cover with the cutout of the lower instrument panel and then install the power outlet socket.

(b) Securely engage the claw.

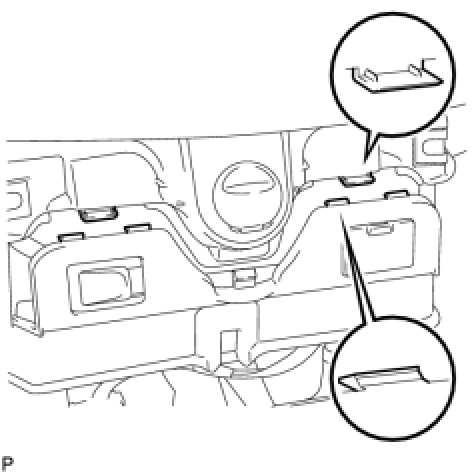

(d) Engage the 6 claws and close the lower instrument panel.
3. INSTALL FRONT CONSOLE BOX Installation
4. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY Installation
5. INSTALL CONSOLE BOX CARPET Installation
6. INSTALL REAR CONSOLE BOX COVER Installation
7. INSTALL UPPER CONSOLE PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
