Brake Fluid: Service and Repair

BRAKE: BRAKE FLUID: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

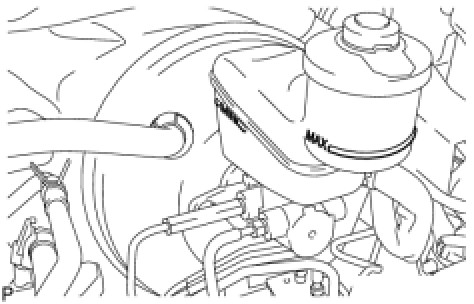

1. INSPECT FLUID LEVEL IN RESERVOIR





(a) Check the fluid level.
If the brake fluid level is low, check for leakage and inspect the disc brake pad. If necessary, refill the reservoir with brake fluid after repair and replacement.
Fluid:
SAE J1703 or FMVSS No. 116 DOT 3
