Removal

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): REMOVAL

REMOVAL





1. REMOVE ROOM LIGHT ASSEMBLY

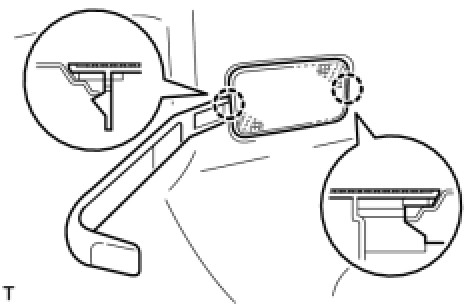

(a) Using a moulding remover, disengage the 2 claws and remove the room light.
(b) Disconnect the connector.
2. REMOVE NO. 2 ROOM LIGHT BULB

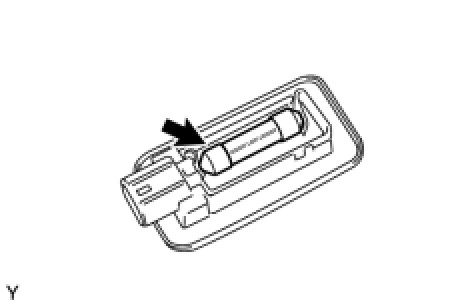

(a) Remove No. 2 room light bulb.
